ofDALI LED Drivers
CC20W200-550CG-DALI
DALI LED Driver, 20W, 200 - 550 mA, DALI2, adjustable DIP switch
TECHNICAL SPECIFICATIONS Input Voltage 220 – 240V Frequency 50 – 60 Hz Power Factor 0.95 Current Ripple ±5% PRODUCT DESCRIPTION Constant Current LED Driver dimmable DALI Output Current adjustable via DIP-SWITCH 200mA - 550mA (in 50mA steps) up to 87% Efficiency Lifetime 50.000h HOUSING CHARACTERISTICS IP grade IP20 Insulation Class II Housing with removable cord grip 116 x 40,5 x 22mm FUNCTIONS Overload Protection Short Circuit Protection Open Circuit Protection Overheat Protection SELV
prijzen per stuk excl. BTW
CUpower DALI Driver
CUpower DALI Driver with 90cm male cable ID CCCI 30/230/400-750 DALI FV1
DATASHEET DOWNLOADEN
prijzen per stuk excl. BTW
CC30W350-700 DALI
LED Driver, 30W, 350-700 mA, Constant current, DALI2, adjustable DIP switch (steps á 50mA)
DATASHEET Technical SpecsInput Voltage 220-240VFrequency 50-60 HzPower Factor 0.95Current Ripple ±3% Product DescriptionConstant Current LED Driverdimmable DALI 2 / Touch DIMOutput Current adjustable via DIP-SWITCHOutput Current 350-700mA -45Vup to 88% EfficiencyLifetime 100.000h Housing CharacteristicsIP grade IP20Insulation Class IIHousing with removable cord grip97 x 43.5 x 23mm FunctionsOverload ProtectionShort Circuit ProtectionOpen Circuit ProtectionOverheat ProtectionSELV
prijzen per stuk excl. BTW
CC35W700-1050-DALI
DALI LED Driver, 35W, 700-1050 mA, DALI2, adjustable DIP switch
DATASHEET Technical SpecsInput Voltage 220-240VFrequency 50-60 HzPower Factor 0.95Current Ripple ±5% Product DescriptionConstant Current LED Driverdimmable DALIOutput Current adjustable via DIP-SWITCH700mA - 1050mA (in 50mA steps)up to 87% EfficiencyLifetime 50.000h Housing CharacteristicsIP grade IP20Insulation Class IIHousing with removable cord grip136 x 42,5 x 24mm FunctionsOverload ProtectionShort Circuit ProtectionOpen Circuit ProtectionOverheat ProtectionSELV
prijzen per stuk excl. BTW

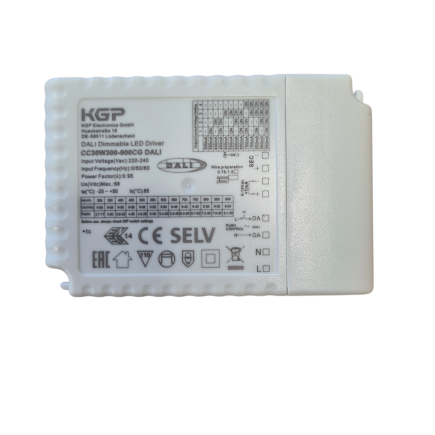

DALI-30W-300-900
DALI LED Driver 30W 300-900 mA, 1-10V, DALI dimmable via DIP switch 300-900mA, 9-58V
Technical SpecsInput Voltage 220-240VFrequency 50-60 HzPower Factor 0.93Current Ripple - less than 2% for wholedimming range Product DescriptionConstant Current LED Driverdimmable, DALI & Push & 1-10VOutput Current adjustable via DIP-SWITCH300 - 700mA (in 50mA steps)up to 86% EfficiencyLifetime 50.000h Housing CharacteristicsIP grade IP20Insulation Class IIHousing with removable cord grip103 x 67 x 22mm FunctionsOverload ProtectionShort Circuit ProtectionOpen Circuit ProtectionOverheat ProtectionSELV
prijzen per stuk excl. BTW

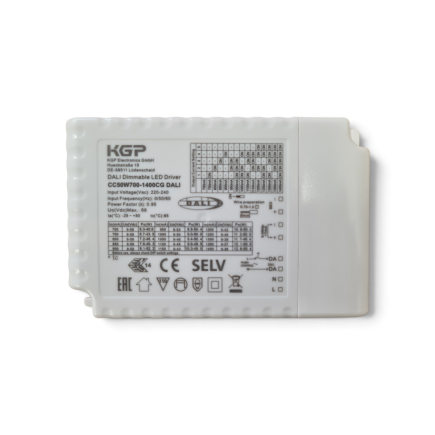

DALI-50W-700-1400
KGP CC50W700-1400CG-1 DALI LED Driver 50W 700-1400 mA, 1-10V & DALI dimmable 700-1400mA via DIP switch, 6-58V
Technical SpecsInput Voltage 220-240VFrequency 50-60 HzPower Factor 0.9Current Ripple Product DescriptionConstant Current LED Driverdimmable, DALI & 1-10VOutput Current adjustable via DIP-SWITCH700, 800, 900, 1050, 1200, 1300, 1400mAup to 87% EfficiencyLifetime 50.000h Housing CharacteristicsIP grade IP20Insulation Class IIHousing with removable cord grip123 x 79 x 24mm FunctionsOverload ProtectionShort Circuit ProtectionOpen Circuit ProtectionOverheat ProtectionSELV
prijzen per stuk excl. BTW
LCM-40DA
Meanwell dimmable driver DALI max. 40W, adjustable output 0,35A 0,5A 0,6A 0,9A 1,05A
40W Constant current LED Power Supply LCM-40DA series The LCM-40DA LED driver is a 40W multiple-stage output current LED power supply with built-in DALI interface. The series have built-in active PFC function, protections including short circuit, over voltage and over temperature. Fully isolated in a plastic case with strain relief design the unit is IP20 rated and is suitable for LED lighting applications. DATASHEET Output current level selectable by DIP Switch180∼295V ac input onlyBuilt-in active PFC functionProtections: Short circuit / Over voltage / Over temperatureCooling by free air convectionFully isolated plastic caseClass II power unit, no FGBuilt-in DALI interface and push dimming functionBuilt-in 12V/50mA auxiliary outputIP20 designTemperature compensation function by external NTCNo load power consumption
prijzen per stuk excl. BTW
LCM-60DA
Meanwell dimbare driver DALI max. 60W, Modular output 500/600/700/900/1050/1400mA
Meanwell DALI 60W Multiple-Stage Output Current LED driverzie de datasheet hieronder
prijzen per stuk excl. BTW
