Gigabit (10/100/1000Mb)

Gigabit

474401

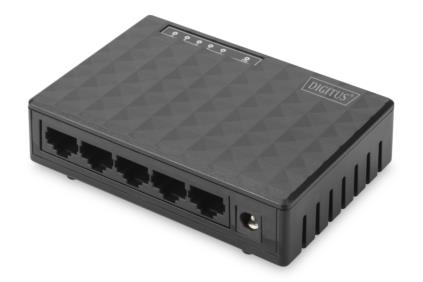

DN-80202 DIGITUS 5 Port Gigabit Switch, Unmanaged

5 port Gigabit Network Switch Fast and easy expansion of your network - Plug and Play Expands your network by 4 additional ports Auto-MDI/MDIX & Auto-negotiation Energy-Efficient Ethernet (EEE) IEEE802.3az Full-duplex flow control IEEE802.3x Fanless design without noise Sturdy metal housing Plug and Play - no configuration or software required Suitable for use on the desktop Ideal for home and small offices The 5-Port Gigabit Switch from DIGITUS® is perfectly suited for the easy expansion of your network. Thanks to its fanless design, the switch operates completely noise-free and does not require configuration. Each port can be used as a LAN or uplink port, the cable and network speed are detected automatically. The switch also supports the energy saving features IEEE802.3az & Full-Duplex Flow Control IEE802.3x. Real Plug and Play – Just plug in the network cable and get started. Technical details: Number of ports: 5 x 10/100/1000 Mbps Ethernet standards: IEEE802.3 / 802.3u / 802.3ab / 802.3az IEEE 802.3x full-duplex flow control Backplane: 10 Gbps MAC address table: 2K Forwarding rate: 148800 pps per port (1000BASE-TX) Data transmission rate: 7.44 Mbps Auto-MDI/MDIX function Transfer method: Store & Forward LED indicators: Power, Link/Act Power consumption: 3W max Operating temperature: 0 °C to +40 °C Storage temperature: -10 °C to +70 °C Operating humidity: 10% - 90% RH (non-condensing) Input voltage external power adapter: 100 - 240 V AC, 50/60 Hz Input voltage switch: 5 V DC, 1 A Power supply of power adapter: Euro plug Type C (CEE 7/16) Plug type device side: Coaxial plug 5.5 mm/2.1 mm Power input at device: 5.5 mm jack for coaxial plug Dimensions (L x W x H): 92 mm x 69 mm x 25 mm Weight: 180 g Color: Black Number of ports: 5 Ethernet speed: Gigabit Industrial usage: no Installation type: Desktop Managed: no Number of ports (Uplink): 0 Outdoorsuitable: no PoE (Power over Ethernet): no Protection against vanadlism: no VLAN: no Package content: 1 x 5 Port Gigabit Switch, Unmanaged 4 x Rubber feet 1 x QIG Quick Installation Guide

€ 22,75
prijzen per stuk excl. BTW
Gigabit

430452

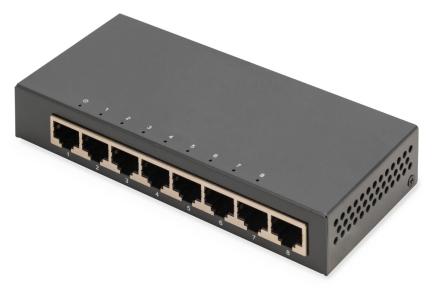

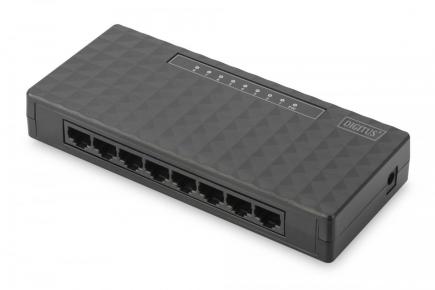

DN-80111 Gigabit Ethernet Switch 8-port, unmanaged, Desktop

Gigabit Ethernet Switch 8-port, unmanaged, Desktop 8 Port 10/100/1000Base-T Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az and IEEE 802.3x network standards Supports non-blocking, non-head-of-line forwarding Silent design - without fan The DIGITUS® Fast Ethernet 8-Port switch is an unmanaged switch which is designed for use in smaller networks. Due to the Auto MDI/MDIX - function of all the ports, the switch can be integrated seamlessly into your network.Low costs, simple use and high performance are the strengths of the DIGITUS® Gigabit Ethernet 8-Port switch and thus make it an excellent choice for your network. Technical details  8 Port 10/100/1000Base-T Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az and IEEE 802.3x network standards Supports non-blocking, non-head-of-line forwarding Supports back pressure and bandwidth control in each port Store and forward technology for optimized data transfer Automatic speed and half / full duplex recognition / adjustment 20 / 200 / 2000 Mbit in full duplex mode Auto MDI/MDI-X function Backplane with 16Gbps Supports up to 4K MAC addresses Integrated power supply unit Silent design - without fan Power supply: 100V AC ~ 240V AC Electricity consumption: 3 Watts Operating temperature: 0 °C - 40 °C Storage temperature: -10°C - 70°C Dimensions (mm): 137 x 74 x 24 (WxDxH) Number of ports: 8 Ethernet speed: Gigabit Industrial usage: no Installation type: Desktop Managed: no Outdoorsuitable: no PoE (Power over Ethernet): no Protection against vanadlism: no VLAN: no Package content 8 port gigabit desktop switch Quick start guide Power Supply Manual

€ 38,35
prijzen per stuk excl. BTW
Gigabit PoE

390275
DN-95330 4-Port 10/100/1000 Mbps PoE Gigabit Desktop Switch + 1x Uplink

Gigabit Ethernet PoE Switch 4-port PoE + 1-port uplink, 62W PoE Network Switch with integrated Power over Ethernet (PoE) solution for an optimal, cost effective and fast integration in small or medium-sized networks Thanks to the PoE function, no additional power supply unit is required for the connected devices Minimize cabling for wireless APs, IP telephones, and any other PoE capable device Fanless design – perfect for office environments and meeting rooms Gigabit Ethernet Speed Additional Uplink Port PoE power budget: 62 Watts The DIGITUS 5-Port Gigabit Desktop Switch with four Power over Ethernet ports and one additional uplink Port, offers your network significant improvement in terms of performance and efficiency. Thanks to PoE support, you only need a single (network) cable for power and data transfer. This switch makes it much easier to connect devices such as access points, network cameras, and IP telephones, and requires far less cabling than alternatives. It also allows you to extend your network in places where there are no power supply cables or sockets available. The switch does not require any configuration and therefore guarantees quick and seamless integration into the network. Moreover, the switch’s fanless design ensures soundless operation, which makes this device the perfect solution for office environments and meeting rooms. Technical details: 4-Port 10/100/1000 Mbps PoE Gigabit Desktop Switch + 1x Uplink Ethernet IEEE802.3 / 802.3u / 802.3x / IEEE802.3 af/at Power over Ethernet (PoE) - You only need one cable for power and data transfer PoE power budget: 62 Watts (one to four ports) Supports PoE: One to four ports (802.af, 15.4 Watts) or for two ports (802.3.at, 30 Watts) Maximum power output: 65 Watts No configuration necessary Status LEDs on each port Pin Feet: V+ (RJ45 Pin 1, 2) V- (RJ45 Pin 3, 6) Circuit isolation protection Backplane: 10Gbps MAC address table: 2K Power supply: 3W max. Dimensions (L x W x H): 140 mm x 95 mm x 39 mm Weight: 300g Color: Black Number of ports: 4 PoE Power budget: 62 W PoE standard: IEEE802.3at (PoE+) Ethernet speed: Gigabit Industrial usage: no Installation type: Desktop Managed: no Number of ports (Uplink): 1 Outdoorsuitable: no PoE (Power over Ethernet): yes Protection against vanadlism: no Uplink port connection: RJ45 USB-C Products: no VLAN: no Package content: 5-Port Gigabit PoE Switch Power Supply Power Cable Manual

€ 58,50
prijzen per stuk excl. BTW
Gigabit PoE

390596
DN-95340 8-Port 10/100/1000 Mbps PoE Gigabit Desktop Switch

Gigabit Ethernet PoE Switch 8-port PoE, 135W PoE  Network Switch with integrated Power over Ethernet (PoE) solution for an optimal, cost effective and fast integration in small or medium-sized networks Thanks to the PoE function, no additional power supply unit is required for the connected devices Minimize cabling for wireless APs, IP telephones, and any other PoE capable device Fanless design – perfect for office environments and meeting rooms Gigabit Ethernet Speed PoE power budget: 131 Watts The DIGITUS 8-Port Gigabit Desktop Switch with eight Power over Ethernet ports, offers your network significant improvement in terms of performance and efficiency. Thanks to PoE support, you only need a single (network) cable for power and data transfer. This switch makes it much easier to connect devices such as access points, network cameras, and IP telephones, and requires far less cabling than alternatives.It also allows you to extend your network in places where there are no power supply cables or sockets available. The switch does not require any configuration and therefore guarantees quick and seamless integration into the network.Moreover, the fanless design of the Switch ensures soundless operation, which makes this device the perfect solution for office environments and meeting rooms. Technical details 8-Port 10/100/1000 Mbps PoE Gigabit Desktop Switch Ethernet IEEE802.3 / 802.3u / 802.3x/802.3ab / IEEE802.3 af/at Power over Ethernet (PoE) - You only need one cable for power and data transfer PoE power budget: 131 Watts (one to eight ports) Supports PoE:  Provides 8 PoE Port, each port output 30W maximum power No configuration necessary Maximum power output: 135 Watts Status LEDs on each port Pin Feet: V+ (RJ45 Pin 1, 2) V- (RJ45 Pin 3, 6) Circuit isolation protection Backplane: 16Gbps MAC address table: 4K Dimensions (L x W x H): 250 mm x 115 mm x 39 mm Weight: 670g Color: Black Number of ports: 8 PoE Power budget: 135 W PoE standard: IEEE802.3at (PoE+) Ethernet speed: Gigabit PoE (Power over Ethernet): yes Package content 8-Port Gigabit PoE Desktop Switch Power Supply Power Cable Manual

€ 129,35
prijzen per stuk excl. BTW
10 inch Gigabit

441007
DN-80114 DIGITUS 8 Port Gigabit Switch, 10 Inch, Unmanaged

Gigabit Ethernet Switch 8-port, 10 inch, unmanaged Ideaal voor in 10 inch wand-patchkasten.  8 x 10/100/1000Base-T Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab and IEEE 802.3x network standards Supports non-blocking, non-head-of-line forwarding Supports back pressure and bandwidth control in each port Store and forward technology for optimized data transfer Automatic speed and half/full duplex recognition/adjustment 20/200/2000 Mbit in full duplex mode Auto MDI/MDI-X function Backplane with 16Gbps Supports up to 8K MAC addresses Integrated power supply unit Power consumption: 5W Operating temperature: 0 °C - 40 °C Dimensions: (W x D x H): 250x150x42 mm Ethernet speed: Gigabit Industrial usage: no Number of ports: 8 PoE (Power over Ethernet): no Protection against vanadlism: no Managed: no Installation type: 10 inch, Desktop Outdoorsuitable: no VLAN: no Package content 10-inch 8-Port Gigabit Switch Quick start guide Power Cable Mounting accessories

€ 55,25
prijzen per stuk excl. BTW
10inch Giga+POE

441038
DN-95317 DIGITUS 8 Port Gigabit PoE Switch, 10 Inch, Unmanaged

Gigabit Ethernet PoE switch 8-port PoE, 10 inch, 80W PoE De DIGITUS® 8-Poorts Gigabit Ethernet PoE schakelaar heeft 8 10/100/1000 Mbps RJ-45-poorten met ondersteuning van PoE. Alle poorten ondersteunen de functie automatische MDI/MDIX, waardoor crossoverkabels en uplinkpoorten overbodig zijn. Lage kosten, eenvoudig beheer en hoge capaciteit zijn de sterke punten van de DIGITUS® Gigabit 8 PoE-poort Ethernetschakelaars, waardoor zij een uitstekende keus zijn voor uw netwerk. Vanwege de compacte afmetingen kan de schakelaar worden geïnstalleerd in wandkasten van 10 inch. De bevestigingshoeken zijn bij het product inbegrepen. Ideaal voor in 10 inch wand patchkasten 8 x 10/100/1000Base-T Voldoet aan de netwerkstandaarden IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3x en IEEE 802.3af/at Ondersteunt Non-Blocking, Non-Head-of-Line Forwarding Ondersteunt tegendruk en regeling bandbreedte op iedere poort Opslaan en doorsturen-technologie voor geoptimaliseerde gegevensoverdracht Automatische herkenning en instelling van snelheid en halve/volledige duplex 20/200/2000 Mbit in full-duplexmodus Automatische MDI/MDI-X-functie Achterzijde met 16 Gbps Ondersteunt maximaal 8K MAC-adressen Geïntegreerde voeding Maximale uitgangsvermogen 96 watt Afmetingen: (L x B x H): 250 x 150 x 42 mm Number of ports: 8 PoE Power budget: 80 W PoE standard: IEEE802.3at (PoE+) Ethernet speed: Gigabit Industrial usage: no Installation type: 10 inch, Desktop Managed: no Outdoorsuitable: no PoE (Power over Ethernet): yes Package content 8-poorts 10-inch Gigabit schakelaar Snelstarthandleiding Netsnoer Bevestigingsmiddelen

€ 116,35
prijzen per stuk excl. BTW
Gigabit

430483

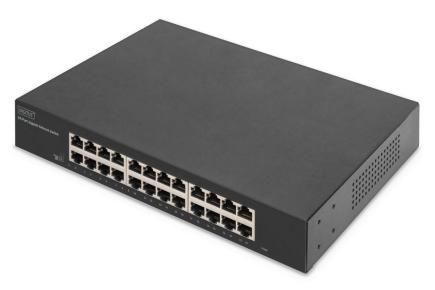

DN-80113 DIGITUS 24 port gigabit switch incl. rack mount kit

24-Port Gigabit Switch 24-port 10/100/1000Base-T, incl. Rack Mount Kit 24 x 10/100/1000Base-T Complies with the IEEE 802.3, IEEE 802.3u and IEEE 802.3x network standards Supports non-blocking, non-head-of-line forwarding Includes mounting material for rack installation This 24-Port Gigabit Ethernet switch makes 24 10/100/1000 Mbps RJ-45 ports with auto negotiation available. All ports support the Auto MDI/MDIX function, which eliminate the need for crossover cables and uplink ports. Low costs, simple use and high performance are the strengths of the DIGITUS® Gigabit Ethernet 24-Port switch and thus make it an excellent choice for your network. Technical details 24 x 10/100/1000Base-T Complies with the IEEE 802.3, IEEE 802.3u and IEEE 802.3x network standards Supports non-blocking, non-head-of-line forwarding Supports back pressure and bandwidth control in each port Store and forward technology for optimized data transfer Automatic speed and half / full duplex recognition / adjustment 20 / 200 / 2000 Mbit in full duplex mode Auto MDI / MDI-X function Backplane with 48Gbps Supports up to 8K MAC addresses Integrated power supply unit Silent energy saving fan Power supply: 100V AC ~ 240V AC Electricity consumption: 15 Watts Operating temperature: 0 °C - 40 °C Storage temperature: -10°C - 70°C Dimensions (mm): 440(L) x 200(W) x 44(H) Number of ports: 24 Ethernet speed: Gigabit Installation type: 19 inch, Desktop Package content 24 port gigabit switch Quick start guide Power Cord cable Mounting accessories

€ 123,50
prijzen per stuk excl. BTW
Gigabit

467687

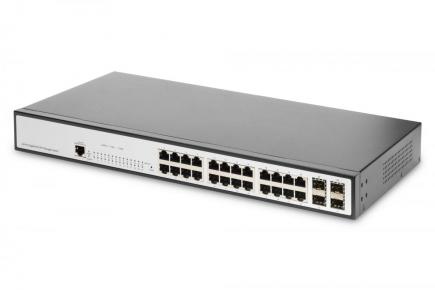

DN-80221-3 Gigabit Ethernet Layer 2 Switch, 24 port +2 combo en 2 SFP uplink ports

L2 managed Gigabit Ethernet Switch 24-port + 2 combo and 2 SFP uplink port 24 x 10/100/1000BaseTX ports 2 x Uplink RJ45/SFP combo ports 2 x SFP uplink ports 1 x RJ45 console port integrated Layer-2 features configurable via WebUI Technical details: 24 x RJ45 ports (1000Mbps) 2 x RJ45/ SFP combo ports for fiber optic connection or Ethernet 2 x SFP uplink ports for SFP modules 1 x RJ45 console port Compatible with following standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3z and 802.3ad - Auto MDI/MDI-X Funktion 8K MAC addresses QoS support layer 4 classification Port mirroring for efficient network surveillance Port Trunk for bandwidth aggregation VLAN for performance and security 802.1x Port Authentication SNMP Network Management Built-in Web-based management Surge protection +/- 6 kV Dimensions: 440 x 208 x 44 mm (WxDxH) Number of ports: 24 Ethernet speed: Gigabit Industrial usage: no Installation type: 19 inch, Desktop Managed: yes Number of ports (Uplink): 4 Outdoorsuitable: no PoE (Power over Ethernet): no Protection against vanadlism: no Uplink port connection: RJ45/SFP VLAN: yes Package content 1 x Gigabit Ethernet Layer 2 Switch, 24 port 1 x Mounting accessories for 483 mm (19") 1 x QIG 1 x Power cord Manual

€ 168,35
prijzen per stuk excl. BTW
