ofAIO - All in One Highbay
AIO Highbay light
AIO, a remarkable evolution from the world of indistinguishable UFO highbays.
By utilizing the latest aluminum die cast and optical lense techniques, AIO unlocks a long time industrial puzzle for simultaneously achieving --- High Lumen Output, High Lumen Efficiency, High light uniformity and Low Glare. Hence, it is named as All-In-One.

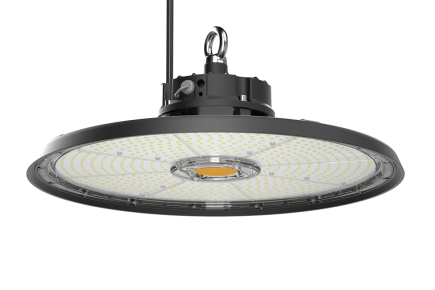

SL-BAY-200W-NW-AI-S-90
NW 4000K AIO highbay optional sensor 100/120/ 150/200W Power Adjustable 16000/19200/ 24000/32000 lm Adjustable with 90c lens

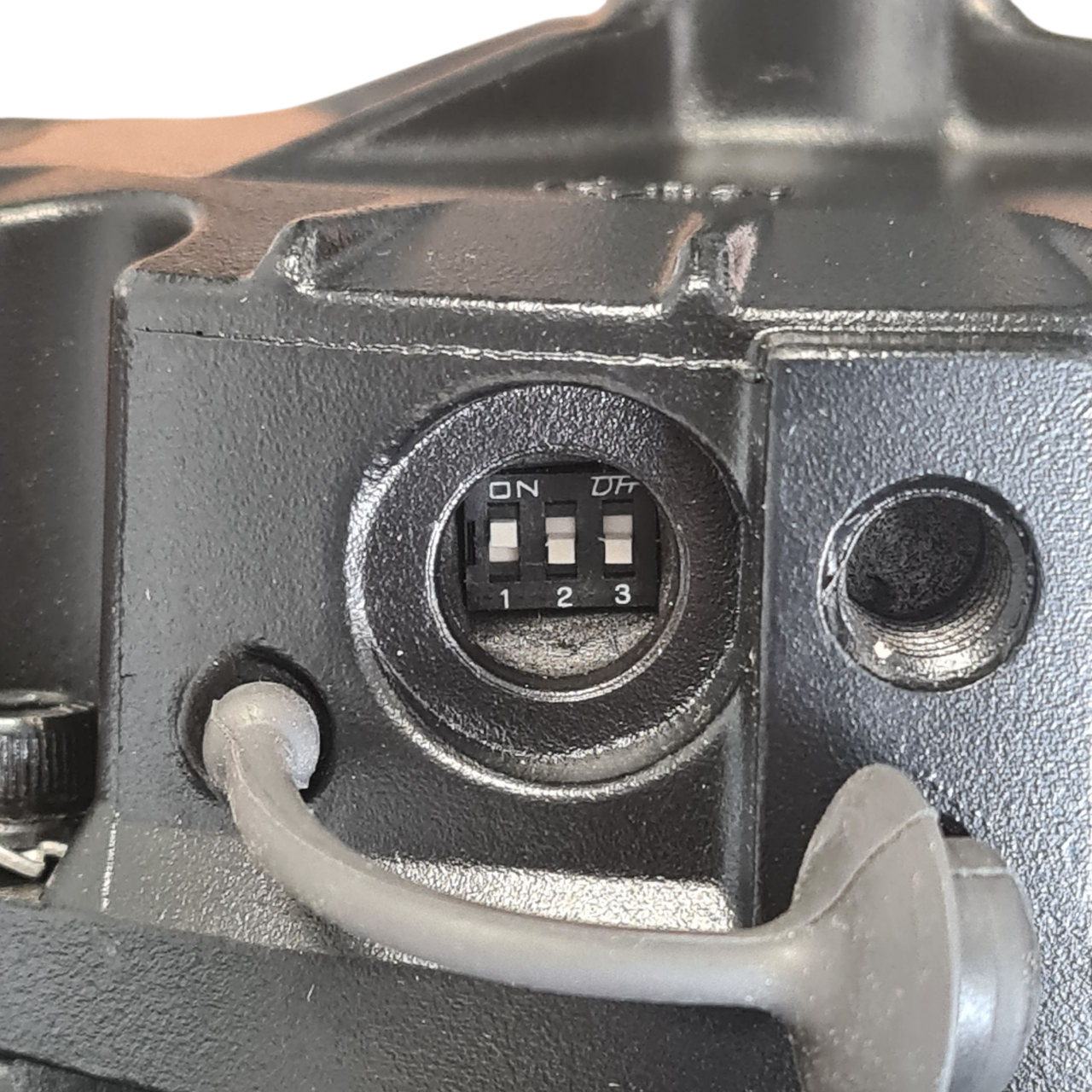

AIO Highbay Light NW 4000K High Lumen Output, High Lumen Efficiency, High light uniformity and Low Glare. All-In-One. DATASHEET Features: 1. Multi-lumen. 4 power options by dip switch (80W/100W/130W/160W). Substantially reduce stock and make the job easy for architects and installers during light planning and installation. 2. Outstanding glare control & superb uniform light distribution. The 1st & only anti glare UGR 19 highbay that can reach UGR0.5 at 8m height, which had been normally regarded as impossible for UFO highbays. 3. AIO defaults 160lm/w and reaches 175lm/w at 85W. The combination of the latest optics and heatsink design ensures its cost competitiveness, and constant leading the LM/W efficacy competition. 4. Plug-in integrated sensor interface, simple conversion to intelligent lighting. 5. Eye catching design with silky smooth surface, easy to Clean. Suitable for Food Processing application. 6. Excellent heat management to guarantee a long service life and the best lumen maintenance. Thanks to the latest die-cast technology, AIO has a flat and thin heatsink body, so the heat of the LEDs is evenly distributed, and finds its shortest possible thermal path for heat dissipation to the surrounding air. 7. Quality driver and LEDs. Robust aluminum housing + PC LENS, IP65, IK09, 5 years real warranty. REQUEST A QUOTE
prijzen per stuk excl. BTW

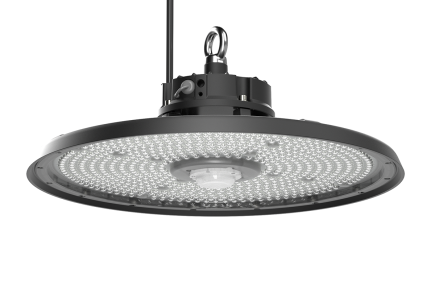

SL-BAY-200W-DW-AI-S
DW 5000K AIO highbay optional sensor 100/120/ 150/200W Power Adjustable 16000/19200/ 24000/32000 lm Adjustable
AIO Highbay Light NW 5000K High Lumen Output, High Lumen Efficiency, High light uniformity and Low Glare. All-In-One. DATASHEET Features: 1. Multi-lumen. 4 power options by dip switch (80W/100W/130W/160W). Substantially reduce stock and make the job easy for architects and installers during light planning and installation. 2. Outstanding glare control & superb uniform light distribution. The 1st & only anti glare UGR 19 highbay that can reach UGR0.5 at 8m height, which had been normally regarded as impossible for UFO highbays. 3. AIO defaults 160lm/w and reaches 175lm/w at 85W. The combination of the latest optics and heatsink design ensures its cost competitiveness, and constant leading the LM/W efficacy competition. 4. Plug-in integrated sensor interface, simple conversion to intelligent lighting. 5. Eye catching design with silky smooth surface, easy to Clean. Suitable for Food Processing application. 6. Excellent heat management to guarantee a long service life and the best lumen maintenance. Thanks to the latest die-cast technology, AIO has a flat and thin heatsink body, so the heat of the LEDs is evenly distributed, and finds its shortest possible thermal path for heat dissipation to the surrounding air. 7. Quality driver and LEDs. Robust aluminum housing + PC LENS, IP65, IK09, 5 years real warranty. REQUEST A QUOTE
prijzen per stuk excl. BTW
SL-ACC-LENS-AIO-90c
optional lens for 200W AIO highbay 90c UGR<22
optional lens for 200W AIO highbay 90c UGR
prijzen per stuk excl. BTW
SL-ACC-HB-RC
Remote Controller incl. carrying case for AIO Sensor SL-ACC-HB-AIS-M
Product Info: Sensor Remote ProgrammerModel Number RC-100Power supply 2xAAA 1.5V battery,Alkaline preferredCarrying case RC-100 in carrying caseUpload range Up to 15m (50ft)OP.temperature 0°C-50°C (32°F-122°F)Dimensions 123x70x20.3mm The remote control wireless IR configuration tool is a handheld tool for remote configuration of IR-enabled fixture integrated sensors. The tool enables device to modify via pushbutton without ladders or tools, and stores up to four sensor parameter modes to speed configuration of multiple sensors. The remote control send sensor setting at mounting height up to 50 feet. The device can display previously established sensor parameters, copy parameters and send new parameters or store parameter profiles. For projects where identical settings may be desired across a large number of areas or spaces, this capability provides a streamlined method of configuration. Settings can be copied throughout a site, or in different sites. DATASHEET
prijzen per stuk excl. BTW
SL-ACC-HB-AIS-M
Plug & Play Microwave / PIR Motion Sensor for AIO highbay
The SL-ACC-HB-AIS-M is a motion sensor that dims lighting from high to low based on movement.This slim, low-profile sensor is designed for installation inside the bottom of a light fixture body.The sensors use microwave sensing technology that reacts to changes in movement within the coverage area.Once the sensor stops detecting movement and the time delay elapses lights will go from high to low mode and eventually to on OFF positon if it is desered.Sensors must directly "see" motion of a person or moving object to detect them, so careful consideration must be given to sensor luminaire placement and lens selection.Avoid placing the sensor where obstrubtions may block the sensor's line of sight. DATASHEET
prijzen per stuk excl. BTW
SL-ACC-HB-AIS-B
Plug & Play Bluetooth Motion Sensor for AIO highbay
12-24V 0-10V Fixture-Integrated Bluetooth Microwave Sensor,compatible with Silvair App and TUYA Product Info 12-24V 0-10V Fixture-Integrated Bluetooth Microwave Sensor, SilvairModel Number ANT-5-4T-BLE-SRInput Voltage 12-24VDCWireless Option Bluetooth SIG MeshDimming Method Single channel 0-10VDCSensing Technology MircowaveMounting Type Fixture_Mount DATASHEET
prijzen per stuk excl. BTW
