Patchkasten tray's Zwart RAL 9005
DN-19 TRAY-1-800-SW

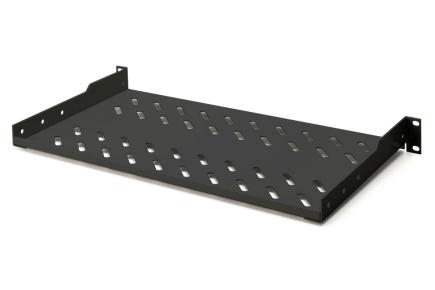

Vaste tray, tot 50 kg, 1U 80 cm diep voor patchkast. Black RAL9005 (364993)
1U fixed shelf, for 800 mm depth cabinets, 44x482x500 mm, adjustable, 500 mm depth, color black (RAL 9005) The shelves for fixed mounting can be installed easy on the four 19“ profile rails of your 19“ network- or server cabinet. Due to their stable, perforated steel sheet with a load capacity of 50 kg, they are the optimal surface for components which are not 19” suitable. The front fixing rails are can be adjusted by 50 mm if needed. The rear fixing rails can be adjusted also. for fixed mounting on the four 483 mm (19“) profile rails front mounting rails can be adjusted up to 50 mm rear mounting rails are variable in depth sturdy, perforated steel sheet incl. fixing material Units: 1 Color: black, RAL 9005 Weight: 3.2 kg Load capacity: 50 kg Dimensions (HxWxD): 44,482,500 mm Mounting type: Adjustable mounting rails ONLY suitable for cabinet depth: 800 mm
MRSBR8001
Mirsan D=800 fixed shelf black WxDxH 465x525x25
1U fixed shelf, for 800 mm depth cabinets, WxDxH = 465x525x25, adjustable, 500 mm depth, color black (RAL 9005) The shelves for fixed mounting can be installed easy on the four 19“ profile rails of your 19“ network- or server cabinet. Due to their stable, perforated steel sheet with a load capacity of 50 kg, they are the optimal surface for components which are not 19” suitable. The front fixing rails are can be adjusted by 50 mm if needed. The rear fixing rails can be adjusted also. front mounting rails can be adjusted up to 50 mm rear mounting rails are variable in depth sturdy, perforated steel sheet incl. fixing material Units: 1 Color: black, RAL 9005 Weight: 3.2 kg Load capacity: 50 kg Dimensions (WxDxH): 465x525x25 mm Mounting type: Adjustable mounting rails ONLY suitable for cabinet depth: 800 mm
DN-19 TRAY-2-800-SW
Digitus tray met telescoop arm, tot 35 kg, 1U 80 cm diep voor patchkast ZWART
MRRAK1U2501
1U 19"d=250mm rack mount shelf, RAL 9005 black
De rackmount shelf wordt op twee punten gemonteerd aan de 19” profielen. De shelf is voorzien van ventilatiesleuven en past in uw standaard 19”rack of cabinet. MRRAK1U2501 past niet in MRSOH07U30DE01 Capaciteit 30 kg Effectieve hoogte 1U Breedte 486 mm Diepte 250 mm Hoogte 44 mm Kleur RAL9005, zwart
MRRAK2U3501
Mirsan 2U 19" D=350mm Rack mount Shelf Black
past niet in 600x450 wandkasten De rackmount shelf wordt op twee punten gemonteerd aan de 19” profielen. De shelf is voorzien van ventilatiesleuven en past in uw standaard 19”rack of cabinet. Capaciteit 30 kg Effectieve hoogte 2U Breedte 486 mm Diepte 350 mm Hoogte 88 mm Kleur RAL9005, zwart
MRRAK1U4001
1U 19"d=400mm rack mount shelf, RAL 9005 black
De rackmount shelf wordt op twee punten gemonteerd aan de 19” profielen. De shelf is voorzien van ventilatiesleuven en past in uw standaard 19”rack of cabinet. Capaciteit 30 kg Effectieve hoogte 1U Breedte 486 mm Diepte 400 mm Hoogte 44 mm Kleur RAL9005, zwart
