ofCat.6a op rol
344117

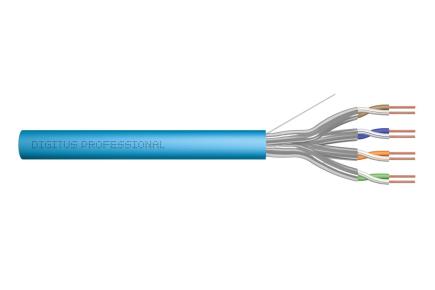

DK-1623-A-VH-1 CAT 6A U-FTP installation cable, 500 MHz Eca (EN 50575), AWG 23/1, 100m paper box, sx, blue
100m Digitus CAT 6A U-FTP gevlochten paar installatiekabel CAT 6A U-FTP installation cable, 500 MHz Eca (EN 50575), AWG 23/1, 100m paper box, sx, blue 10GBit Ethernet 500 MHz transmission frequency PoE Power over Ethernet support CPR class Eca De kabel bestaat uit 8 aders met kleurcodering en AWG 23 polyethyleen isolatie. De aders zijn ineengedraaid in 4 paren met verschillende draadlengtes. De kabel wordt geleverd in een kartonnen uittrekdoos wat de installatie vereenvoudigt. Physical properties: Conductor: Bare annealed copper, solid AWG 23/1 Total number of insulated conductors: 8, twisted in 4 pairs Color code: Blue-white, orange-white, green-white, brown-white Individual pair shielding: Aluminum foil, providing 100 % coverage Overall shielding: None, with drain wire Outer sheath: Eca to B2ca acc. to EN 50575; LSZH Outer sheath color: Light blue (RAL 5012) Mechanical properties: Tensile loading: 150N max. Dynamic bending radius: 8x AD mm min. Static bending radius: 4x AD mm min. Shipping- and storage temperature range: -20 °C up to +60 °C Operating temperature range: -20 °C up to +75 °C Installation temperature range: 0 °C up to +50 °C Overall diameter Simplex (nominal): 7.0 (Eca); 7,2 mm (Dca); 7,6 mm (Cca); 7,6 mm (B2ca) Weight (kg/km): 56 kg (Eca); 57 kg (Dca); 58 kg (Cca); 58 kg (B2ca) Electrical properties: Impedance: 100±15 Ohm @ 4 - 100MHz; 100±25 Ohm @100-500 MHz Capacitance: 45 pF/m nominal @ 1 KHz Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz Insulation resistance: 5 GOhm x km min. DC loop resistance: 190 Ohm/km max. (2% max. resistance unbalance) Voltage resistance: 72 Vdc max. Coupling attenuation: CA-Type 2 Signal propagation delay: 450 nS/100 m max. Propagation delay: 25 nS/100 m max. Separating class: ,,c” acc. to EN 50174-2 NVP: 70% Assortment: Twisted Pair Installation Cables Category: CAT 6A Shielding: U-FTP, pairs in metal foil CPR: Eca Length: 100 m Color: light-blue Jacket: LSOH Structure: 4 x 2 AWG 23/1, solid twisted pair
prijzen per stuk excl. BTW
344124
DK-1623-A-VH-305 CAT 6A U-FTP installation cable, 500 MHz Eca (EN 50575), AWG 23/1, 305m drum, sx, blue
305m CAT 6A U-FTP gevlochten paar installatiekabel CAT 6A U-FTP installation cable, 500 MHz Eca (EN 50575), AWG 23/1, 305 m drum, sx, blue 10GBit Ethernet 500 MHz transmission frequency PoE Power over Ethernet support CPR class Eca Iedere kabel bestaat uit 8 aders met kleurcodering en AWG 23 polyethyleen isolatie. De aders zijn ineengedraaid in 4 paren met verschillende draadlengtes. De kabel wordt geleverd in een kartonnen uittrekdoos of op een houten haspel, wat de installatie vereenvoudigt. Physical properties: Conductor: Bare annealed copper, solid AWG 23/1 Total number of insulated conductors: 8, twisted in 4 pairs Color code: Blue-white, orange-white, green-white, brown-white Individual pair shielding: Aluminum foil, providing 100 % coverage Overall shielding: None, with drain wire Outer sheath: Eca to B2ca acc. to EN 50575; LSZH Outer sheath color: Light blue (RAL 5012) Mechanical properties: Tensile loading: 150N max. Dynamic bending radius: 8x AD mm min. Static bending radius: 4x AD mm min. Shipping- and storage temperature range: -20 °C up to +60 °C Operating temperature range: -20 °C up to +75 °C Installation temperature range: 0 °C up to +50 °C Overall diameter Simplex (nominal): 7.0 (Eca); 7,2 mm (Dca); 7,6 mm (Cca); 7,6 mm (B2ca) Weight (kg/km): 56 kg (Eca); 57 kg (Dca); 58 kg (Cca); 58 kg (B2ca) Electrical properties: Impedance: 100±15 Ohm @ 4 - 100MHz; 100±25 Ohm @100-500 MHz Capacitance: 45 pF/m nominal @ 1 KHz Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz Insulation resistance: 5 GOhm x km min. DC loop resistance: 190 Ohm/km max. (2% max. resistance unbalance) Voltage resistance: 72 Vdc max. Coupling attenuation: CA-Type 2 Signal propagation delay: 450 nS/100 m max. Propagation delay: 25 nS/100 m max. Separating class: ,,c” acc. to EN 50174-2 NVP: 70% Assortment: Twisted Pair Installation Cables Category: CAT 6A Shielding: U-FTP, pairs in metal foil CPR: Eca Length: 305 m Color: light-blue Jacket: LSOH Structure: 4 x 2 AWG 23/1, solid twisted pair
prijzen per stuk excl. BTW
441885
DK-1614-A-VH-5 CAT 6A U-UTP installation cable, 500 MHz Dca (EN 50575), AWG 23/1, 500 m drum, sx, blue
500m CAT 6A U-UTP installation cable, 500 MHz Dca (EN 50575), AWG 23/1, 500 m drum, sx, blue Dit is een bestelartikel dus niet standaard op voorraad. Levertijd in overleg. verkoop@primacom.nl Future-oriented standards and high-end quality for your network. 10GBit Ethernet 500 MHz transmission frequency PoE Power over Ethernet support CPR class Dca DIGITUS® Category 6A U-UTP installation cables are manufactured and tested to the ISO/IEC 11801, TIA/-586-C.2 and EN 50173 Category 6A specifications. Every cord consists of 8 color coded AWG 23 polyethylene insulated con-ductors. The conductors are twisted together to form 4 pairs with varying lay lengths. Printing details along the outer sheath includes the brand name and item code. The cable is packed in a paper pullout box which makes the installation easy. Technische details: Physical properties: Conductor: Bare annealed copper, olid AWG 23/1 Insulation: HD-PE (High Density Polyethylene) Total number of insulated conductors: 8, twisted in 4 pairs Color code: Blue-white, orange-white, green-white, brown-white Individual pair shield: None Overall shielding: None Outer sheath: Dca to B2ca acc. to EN 50575; LSZH Outer sheath diameter (nominal): 0,5 mm (Eca); 0,6 mm (Dca); 1,2 mm (Cca); 1,4 mm (B2ca) Outer sheath color: Light blue (RAL 5012) Mechanical properties: Tensile loading: 150N max. Dynamic bending radius: 8x AD mm min. Static bending radius: 4x AD mm min. Shipping- and storage temperature range: -20 °C up to +60 °C Operating temperature range: -20 °C up to +75 °C Installation temperature range: 0 °C up to +50 °C Overall diameter Simplex (nominal): 7,1 mm (Eca); 7,3 mm (Dca); 7,4 mm (Cca); 7,6 mm (B2ca) Weight (kg/km): 53 kg (Eca); 54 kg (Dca); 55 kg (Cca); 56 kg (B2ca) Electrical properties: Impedance: 100±5Ohm @ 1 - 600MHz Capacitance: 40 pF/m nominal @ 1 KHz Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz Insulation resistance: 5 GOhm x km min. DC loop resistance: 147 Ohm/km max. (2% max. resistance unbalance) Voltage resistance: 72 Vdc max. Coupling attenuation: CA-Type 2 Signal propagation delay: 450 nS/100 m max. Propagation delay: 10 nS/100 m max. Separating class: “c” acc. to EN 50174-2 NVP: 70% Category: CAT 6A Shielding: U-UTP, unshielded CPR: Dca Length: 500 m Color: light-blue Jacket: LSOH Structure: 4 x 2 AWG 23/1, solid twisted pair Kabels met de brandklasse Dca kunnen worden gebruikt in gebouwen met een middelgroot brandrisico.
prijzen per stuk excl. BTW
