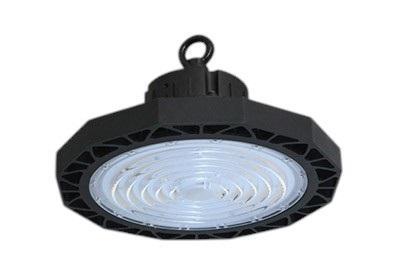

Element Small Size & Light weight

SL-BAY-100W-DW-EN-120
Sheenly Element Highbay DW 5000K 13.000 Lm. Moso driver Samsung LED's Ø260*147 120º light angle

Dimension D260*137mm Power & Lumen Output 13000 lm @ 5700K Color Temperature Day White 5000 ±300K Color Rendering Index >80 Rated Life (L80) 50.000 hours Driver Moso LED's Samsung Housing Aluminium Lens Plastic Beam Spread 120º     (Optional: 60º / 90º) Operating Temperature -25ºC to +45ºC (Amb.) Input Voltage 100-277 V/AC Power Factor  > 0.9 Net Weight 2.0 - 3.2 Kg Glow Wire  650ºC IP IP65 IK IK06 Installation Pendent MountedWall Mounting Datasheet IES files Installation Manual Dekra cert

SL-BAY-160W-DW-HE-90
Sheenly Element Highbay High Efficiency DW 5000K 26000 Lm Moso driver Samsung LED's Ø260*147 90º light angle

High Efficiency 160lm/Watt Dimension D300*147mm Power & Lumen Output 25600 lm @ 5700K Color Temperature Day White 5000 ±300K Color Rendering Index >80 Rated Life (L80) 50.000 hours Driver Moso LED's Samsung Housing Aluminium Lens Plastic  Beam Spread 120º     (Optional: 60º / 90º) Operating Temperature -25ºC to +45ºC (Amb.) Input Voltage 100-277 V/AC Power Factor  > 0.9 Net Weight 2.0 - 3.2 Kg Glow Wire  650ºC IP IP65 IK IK06 Installation Pendent MountedWall Mounting Datasheet IES files Installation Manual Dekra cert

SL-BAY-160W-DW-HE-120
Sheenly Element Highbay High Efficiency DW 5000K 26000 Lm Moso driver Samsung LED's Ø260*147 120º light angle

High Efficiency 160lm/Watt Dimension D300*147mm Power & Lumen Output 25600 lm @ 5700K Color Temperature Day White 5000 ±300K Color Rendering Index >80 Rated Life (L80) 50.000 hours Driver Moso LED's Samsung Housing Aluminium Lens Plastic  Beam Spread 120º     (Optional: 60º / 90º) Operating Temperature -25ºC to +45ºC (Amb.) Input Voltage 100-277 V/AC Power Factor  > 0.9 Net Weight 2.0 - 3.2 Kg Glow Wire  650ºC IP IP65 IK IK06 Installation Pendent MountedWall Mounting Datasheet IES files Installation Manual Dekra cert

SL-BAY-200W-DW-EN-90
Sheenly Element Highbay200W DW 5000K 26.000 Lm. Moso driver Samsung LEd's Ø300*147 90º light angle

Dimension D300*147mm Power & Lumen Output 26000 lm @ 5700K Color Temperature Day White 5000 ±300K Color Rendering Index >80 Rated Life (L80) 50.000 hours Driver Moso LED's Samsung Housing Aluminium Lens Plastic Beam Spread 120º     (Optional: 60º / 90º) Operating Temperature -25ºC to +45ºC (Amb.) Input Voltage 100-277 V/AC Power Factor  > 0.9 Net Weight 2.0 - 3.2 Kg Glow Wire  650ºC IP IP65 IK IK06 Installation Pendent MountedWall Mounting Datasheet IES files Installation Manual Dekra cert

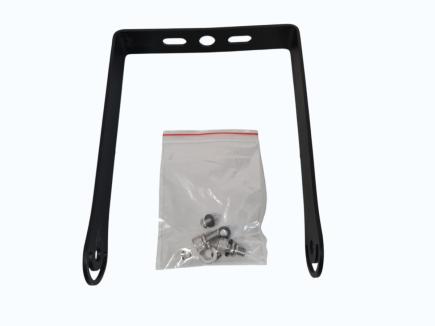

SL-ACC-HB-WALL-M-ET
Sheenly Wall Mounted fixture for Element Highbay

The mounting fixture for the Sheenly Highbay Element makes it possible to mount the Element, instead of hanging it.(The Highbay Element can be mounted on a wall instead of the ceiling.)Comes with screws to fix the Highbay to the bracket. Always let a professional assess which fastening materials are needed.

SL-LENS-60C-EL 100W/150W
60 degree lens(100W/150W element)

SL-LENS-60C-EL 160w/200W
60 degree lens(160W/200W element)

SL-LENS-90C-EL 100w/150W HB
90 degree lens(100W/150W element)

SL-LENS-90C-EL 160w/200W HB
90 degree lens(160W/200W element)

SL-LENS-120C-EL 100W/150W HB
90 degree lens(100W/150W element)

SL-LENS-120C-EL 160W/200W HB
120 degree lens(160W/200W element)
