175681
DN-9002-N CAT 5e modular wall outlet, shielded, OPBOUW (wit)
CAT 5e wall outlet, shielded, 2x RJ45 8P8C, LSA, pure white, surface mount Surface mount design and horizontal cable entry provide a neat and easy accessable installation Ensured safety due to completely shielded RJ45 sockets and LSA strips The sockets are angled by 40° which makes the plug in of patch cables very easy Technical details: Transmission property: Category 5e Area of application: Up to 100 MHz, 10/100Base-T, 1GBase-T Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C General properties: Suitable for installation in trunking, surface and flush mount RJ45 female, 8P8C Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B Integrated strain relief for installation cables Complete shielding of RJ45 sockets and LSA strips due to zinc die-cast housing Strain relief 40°-angled female for patch cord Central plate: 50 x 50 mm Frame: 80 x 80 mm Central plate with integrated dust covers Design compatible to common switch ranges Technical properties: Housing material: Die-cast metal RJ45 female material: ABS UL 94V-0 RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact RJ45 shielding: Tinned bronze LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze Conductor plate: FR4, UL 94V-0 Physical properties: Insertion force: 30N max. (IEC 60603-7-5) Retention strength: 7.7 kg between jack and plug Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 IDC wire size: 22 – 26 AWG solid and stranded conductor Insulation resistance: > 500 MOhm Contact resistance: < 20 MilliOhm Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground) Not compatible with R&M freenet patch cords
prijzen per stuk excl. BTW
306160
DN-93801-1 Faceplate for Keystone Jacks, 2xRJ 45 + dust cover Pure White RAL9010
Faceplate for Keystone Jacks, 2x RJ45 dust cover, 80x80 + central plate, pure white For connection of Keystone Jacks Connection way of the module are 45° vertical 2 port inclusive Module shutter device, avoid dust Name plate desing for identification 80/80mm frame + 50/50mm central plate Dust protection shutter included Shining structured surface parts Full shielded metal housing, usable as central grounding position Color: White RAL 9010 German type Not fit with flush-device outlets acc. DN 49073-1 Ø 60MM Compatible with Keystone Modules: DN-93612, DN-93614 & DN-93615 Kies artikelnr. 259367 als bijhorende surface mounting box
prijzen per stuk excl. BTW
259367
DN-93803 Surface mount box for faceplates 80x80x42 mm, color pure white
Surface mount box for faceplates 80x80x42 mm, color pure white, German layout The perfect solution to extend your data outlets. RJ45 Back Plate Wall Mount box Single and Double Wall Mountable Box Suitable for Single and Double Faceplates W: 80 x L: 80 mm Color: Pure White RAL9010 Neem voor de bijbehorende faceplate artikelnr. 306160
prijzen per stuk excl. BTW
ET-25085
Faceplate for Keystone Jacks, 2xRJ 45 + dust cover, gebroken wit
Gebruik als bijbehorende mounting box ET-25084 Voor het gebruik van 2 keystone-modules met 40º schuine montage.
prijzen per stuk excl. BTW

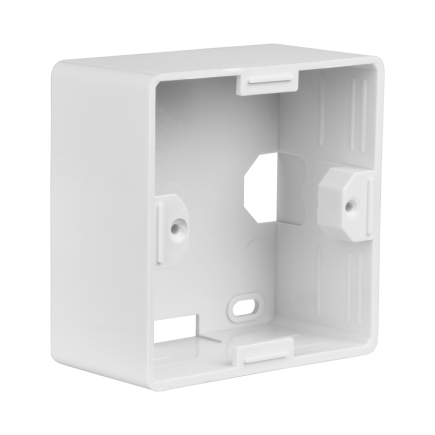

ET-25084
Professional Surface Mountbox 80x80 mm for Keystone Walloutlet RAL9010
Surface frame 80 x 80 x 40 mm, without cover For data outlets and keystones Kleur: gebroken wit Gebruik als bijbehoren faceplate ET-25085 / ET-25201 / ET-25211.2V1 zie hieronder
prijzen per stuk excl. BTW
