ofDN-91411 Modular Patch Panel, shielded 24-port, blank, 1U, rack mount, black RAL 9005
€ 16,19 prijzen per stuk excl. BTW
| Aantal | Prijs |
|---|---|
| 1 - 9 | € 16,19 |
| 10 - 19 | € 15,63 |
| 20 > | € 14,94 |
Modular Patch Panel, shielded, 24-port, blank, 1U, rack mount, color black RAL 9005
Delivery without modulesLayout Keystone Entry: Straight
Technical details
- Layout Keystone Entry: Straight
- Area of application: 483 mm (19") cabinet
- Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
- General properties:
- Suitable for 483 mm (19") cabinet mounting
- Suitable for shielded Digitus® Keystone Modules and Couplers
- Central ground connection
- Technical properties:
- Housing material: 1.5 mm SPCC cold rolled stell sheet, powder-coated
- Material standard: EN 10 130(1991), BS 1449, NFA 36/401, DIN 1623, UNI 5866, UNE 36-086, SIS, JIS G 3141, ASTM, SAE, NFA 36/401
- Grounding bar material: Galvanized steel
- Grounding wire: 18 AWG, 40 cm
- Physical properties:
- Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
| EAN nr | 4016032280798 |
276005

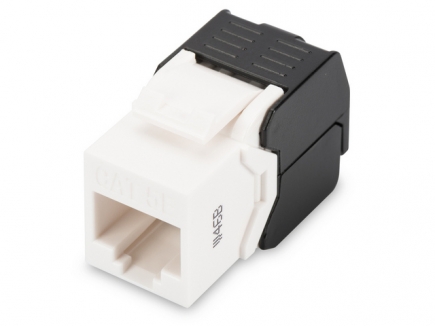

DN-93502 CAT 5e Keystone Jack, unshielded RJ45 to LSA, Tool Free Connection
CAT 5e, Class D Keystone Module, unshielded, toolfree Best performance and link quality for your network. The DN-93502 from DIGITUS® is an unshielded CAT 5e Keystone Module with tool free installation which provides best performance and link quality for your network. The cable installation takes place via LSA, color coded acc. EIA/TIA 568 A&B. Technical details: Transmission properties: Category 5e Area of application: Up to 100 MHz, 10/100Base-T, 1GBase-T Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C General properties: Suitable for 483 mm (19") cabinet mounting RJ45 female, 8P8C Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B Cable fixing with cable tie Tool-free installation Technical properties: RJ45 female material: ABS UL 94V-0 RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze Conductor plate: FR4, UL 94V-0 Physical properties: Insertion force: 30N max. (IEC 60603-7-5) Retention strength: 7.7 kg between jack and plug Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 IDC wire size: 22 – 26 AWG solid and stranded conductor Insulation resistance: > 500 MOhm Contact resistance: < 20 MilliOhm Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground) Assemblage instructiesQuick Start Guide
prijzen per stuk excl. BTW
245087
DN-93501 Keystone jack, RJ45, CAT5E, RJ45 F-LSA unshielded, black (157427)
CAT 5e Keystone Jack, unshielded RJ45 to LSA, color blackFuture-oriented standards and high-end quality for your network. This is an unshielded CAT 5e Keystone Module, which provides best performance and link quality for your network.The cable installation takes place via LSA, color coded acc. EIA/TIA 568 A&B. Technical details: Transmission properties: Category 5e Area of application: Up to 100 MHz, 10/100Base-T, 1GBase-T Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C General properties: Suitable for 483 mm (19") cabinet mounting RJ45 female, 8P8C Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B Cable fixing with smart cable ties Technical properties: RJ45 female material: ABS UL 94V-0 RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze Conductor plate: FR4, UL 94V-0 Physical properties: Insertion force: 30N max. (IEC 60603-7-5) Retention strength: 7.7 kg between jack and plug Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 IDC wire size: 22 – 26 AWG solid and stranded conductor Insulation resistance: > 500 MOhm Contact resistance: < 20 MilliOhm Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground) AWG-range (MIN): 26 … 22 Category: 5E Colour: Black Connection type: LSA Model: Bus (jack) Screened: no Special tool necessary: no Suitable for flat cable: yes Suitable for litz wire conductor: yes Suitable for round cable: yes Suitable for solid core: yes Type of connector: RJ45 8(8) DatasheetQuick Start Guide
prijzen per stuk excl. BTW
245100
DN-93601 CAT 6 Keystone Jack, unshielded RJ45 to LSA, color black
Best performance and link quality for your network CAT 6 Keystone Jack, unshielded, RJ45 to LSA Color black Technical details: Transmission properties: Category 6 Area of application: Up to 250 MHz, 1GBase-T Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C General properties: Suitable for 483 mm (19") cabinet mounting RJ45 female, 8P8C Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B Cable fixing with smart cable ties Technical properties: RJ45 female material: ABS UL 94V-0 RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze Conductor plate: FR4, UL 94V-0 Physical properties: Insertion force: 30N max. (IEC 60603-7-5) Retention strength: 7.7 kg between jack and plug Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 IDC wire size: 22 – 26 AWG solid and stranded conductor Insulation resistance: > 500 MOhm Contact resistance: < 20 MilliOhm Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground) Datasheet Quick Start Guide
prijzen per stuk excl. BTW
022242
RJ45 Cat.6A / ClassEA Shielded keystone zinc body separate dust cap. certified according to ANSI/TIA-568-C.2, ISO/IEC 11801 and IEC 60603-7-51
Keystone, Cat.6a/Class EA // The OC45 keystone module provides a combination of excellent transmission qualities and an easy tool-free assembly. The high quality of the OC45 keystone module ensures very good qualities for 10Gigabit Ethernet applications. No special tools are needed for the assembly. The assembly is easy and handy to execute.With the OC45 keystone module you receive a fully shielded module, which will provide good service for a long time in yournetwork installation.Specifications:Shielded keystone zinc diecast body with separate dust capCat.6A components certified according to ANSI/TIA-568-C.2, ISO/IEC 11801 and IEC 60603-7-51Compact cable presorter for AWG 24/1 .. AWG 22/1Pair management according to TIA 568A /B colour codesPoE and PoE Plus according to IEEE802.3af/atAppropriate for all distribution panels and frames with Keystone outbreak, not for UAEStrain relief with cable tiesIncluded accessories:1 x RJ45 keystone, 1 x copper foil, 1 x cable tie, dust cover, mounting instruction Handleiding voor toolless keystone jack
prijzen per stuk excl. BTW
353539
DN-93617 CAT 6A Keystone Jack, shielded, toolfree
CAT 6A Keystone Jack, shielded tool free connection Multi-design, shielded, tool free and intelligent cable manager The cat. 6A keystone module with 360 ° shielding supports transmission speeds of up to 10 GBit/s & 500 MHz in connection with cat. 6A or higher network installation cables Cable attachment using resealable quick locks makes it possible to reopen and therefore use the keystone module multiple times, for example with field applications In connection with a modular patch panel and modular network junction boxes, the cat. 6A keystone modules are perfect for modern, structured building cabling The mounting connection of the keystone module in category 6A / class EA makes tool-free installation possible for network cables with conductor cross-sections between AWG 26/7 and 22/1 Keystone jack with RJ45 jack is GHMT certified - design compatible with standard network sockets - LSA rails color-coded in accordance with EIA/TIA 568 A&B The shielded cat. 6A keystone module set DN-93617 from DIGITUS® impresses with future-oriented standards and high-end quality for your network. The modules have a 360° shield contact and a resealable, intelligent cable manager for cable grip and cable fixation. The compact design makes series installation possible in a 483 mm (19”) 1U panel. Tool-free installation uses LSA rails color-coded in accordance with EIA/TIA 568 A&B. Its compact design also means that the module fits in design-compatible modular junction boxes.Technical details: Category 6A 10GBase-T, 500 MHz ISO/IEC 11801 3rd Edition, EN 50173-1 Suitable for PoE/PoE+ (IEEE 802.3af, 3at) Suitable for modular patch panel and modular wall outlet installation. RJ45-Jack, 8P8C Cable installation via insulation-displacement connectors, color coded in accordance with EIA/TIA 568 A & B Cable grip and cable fixation using intelligent cable manager Tool-free mounting connection 360° shield contact Case material: Zinc die-cast – nickel-plated Contact material: Phosphor bronze Contact coating: Nickel, gold-plated 0.5 µ Insertion force: Max. 30N (as per IEC 60603-7-51) Holding force: 7.7 kg between jack and plug Operating temperature range: -20 °C to +70 °C (ISO/IEC 11801, ANSI/TIA 568 C.2) Mating cycles: ≥ 1000 (ISO/IEC 11801, IEC 60603-7-51) Copper cable diameter: AWG (26/7 – 22/1), stranded and solid wire Tested with AWG 22/1 solid installation cable (DIGITUS® DK-174X-A-VH-X; AWG 22/1 cat. 7A installation cable) Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground) Tool-free installation using LSA insulation-displacement connectors color coded in accordance with EIA/TIA 568 A & B Intelligent cable manager (resealable) Dimensions (HxWxD): 21.0 x 14.5 x 34.5 mm Weight: 19.5 g AWG-range (MIN): 26 … 22 Category: 6A (IEC) Colour: Silver Connection type: LSA Model: Bus (jack) Screened: yes Suitable for litz wire conductor: yes Suitable for round cable: yes Suitable for solid core: yes Type of connector: RJ45 8(8) DatasheetQuick Start Guide
prijzen per stuk excl. BTW
366317
DN-93606 CAT 6A Keystone Jack, unshielded, 500 MHz toolfree connection.
DIGITUS CAT 6A Keystone Jack, unshielded, 500 MHz acc. ISO/IEC 11801:2002 AM2:2009/09, tool free connectionThe Keystone Module "DN-93606" from DIGITUS® is unshielded and provides with tool free installation best performance and link quality for your network. The compact design allows the installation of 24 pieces in a row of 483 mm (19") 1U Panels It is conform to Category 6A / 10GBase-T Channel, ANSI/EIA/TIA 568C.2.1:2002, ISO/IEC 11801:2002 and certificated by GHMT. Material enclosure: ABS non halogen, UL 94 V0 Material contacts: Phosphor bronze Contacts coating: Nickel, gold plated 0.6 µ Material PCB: FR4, 1.2 mm thickness Mating cycles: ≥ 750 Operating temperature: -10 °C ~+50 °C Tool free cable installation via LSA stripes, color coded according to EIA/TIA 568 A & B RJ45 jack, female, for patch panel installation Assemblage instructies DatasheetQuick Start Guide
prijzen per stuk excl. BTW
378518
DN-93612-1 CAT 6 Keystone Jack. Shielded, RJ45 to LSA Tool free
Quick and safe wire terminations without any special tool CAT 6 Keystone Jack, shielded, 250 MHz acc. ISO/IEC 11801:2002 AM2:2009/09, tool free connection Assemblage instructies DatasheetQuick Start Guide The fully downward compatible CAT 6 Keystone Jack makes an easy installation in combination with excellent measurements possible. Transmission properties: Category 6, Class E Area of application: Up to 250 MHz, 1GBase-T Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C General properties: Suitable for patch panels and mounting outlets RJ45 female, 8P8C Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B Cable fixing with smart cable ties Tool-free installation 360° shield coverage Technical properties: Housing material: Zinc die-cast, nickel-plated RJ45 female material: ABS UL 94V-0 RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact RJ45 shielding: Tinned bronze LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze Conductor plate: FR4, UL 94V-0 Physical properties: Insertion force: 30N max. (IEC 60603-7-5) Retention strength: 7.7 kg between jack and plug Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 IDC wire size: 22 – 26 AWG solid and stranded conductor Insulation resistance: > 500 MOhm Contact resistance: < 20 MilliOhm Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground) Weight: 22 g
prijzen per stuk excl. BTW
266846
DN-93613-1 Cat6 Modular Coupling, 8P8C, shielded. 2 X RJ45 F, for panel connection
DIGITUS CAT 6 Modular Coupler, shielded, RJ45 to RJ45 For panel connection Suitable for panel connection 2 x RJ45 female Assignment 1:1 Material enclosure: ABS non halogen, UL 94 V0 Material surface: Copper with shining Nickel Material PCB: FR4, 1,2mm thickness Contacts coating: Nickel, gold plated 0,6µ Mating cycles: ≥ 750 Operating temperature: -10°C ~+50°C
prijzen per stuk excl. BTW
