Keystone jacks

027723
Keystone Surface Mounted Box 12 port UTP, white

With shutter and Name Plate technical data: Weight: 50gSurface-mounted box 170 x 112 x 38 mmSuitable for 12 keystone jacksSturdy housing, white

Staffelkorting op dit artikel aanwezig

306160
Faceplate for Keystone Jacks, 2xRJ 45 + dust cover Pure White RAL9010

Faceplate for Keystone Jacks, 2x RJ45, dust cover, 80/80 + central plate, RAL 9010  For connection of Keystone Jacks Connection way of the module are 45° vertical 2 port inclusive Module shutter device, avoid dust Name plate desing for identification 80/80mm frame + 50/50mm central plate Dust protection shutter included Shining structured surface parts Full shielded metal housing, usable as central grounding position Color: White RAL 9010 German type Not fit with flush-device outlets acc. DN 49073-1 Ø 60MM Compatible with Keystone Modules: DN-93612, DN-93614 & DN-93615 Kies artikelnr. 259367 als bijhorende surface mounting box

Staffelkorting op dit artikel aanwezig

134471
Cat 6 RJ45 AWG22-27 Field-Plug

The INFRALAN® RJ45 plug provides a combination of excellent transmission quality and fast and easy tool-free assembly. Fully shielded zinc diecast housing ensures the best EMC features especially in industrial environments. IDC terminals and very low contact resistances assure high quality contacting for installation cables up to 9mm diameter and wire gauge from AWG22 - AWG27. Shielded zinc diecast body with separate dust cap and strain relief boot Class E performance according to ISO/IEC11801 and IEC60603-7-5 Compact cable manager for AWG 22/1 .. AWG 26/1 or AWG22/7 .. AWG27/7 Pair management according to TIA 568A /B colour codes and industrial Profinet 1-2-3-6 Re-termination capability up to 5 times with the same width, for AWG27/7 up to 2 times. Suitable for cable dia from 6,0mm .. 9,0mm Strain relief with cable tie

276005
DN-93502 CAT 5e Keystone Jack, unshielded RJ45 to LSA, Tool Free Connection

Best performance and link quality for your networkCAT 5e Keystone Jack, unshielded, RJ45 to LSA Tool Free Connection Material enclosure: ABS non halogen, UL 94 V0Material contacts: Phosphor bronzeContacts coating: Nickel, gold plated 0,6µMaterial PCB: FR4, 1,2mm thicknessMating cycles: ≥ 750Operating temperature: -10°C ~+50°C

Staffelkorting op dit artikel aanwezig

245094
DN-93511 CAT 5e Keystone Jack, shielded. RJ45 to LSA

Best performance and link quality for your networkCAT 5e Keystone Jack, shielded, RJ45 to LSA Tested for Link Performance CAT 5eCable installation via LSA stripes, color-coded as per EIA/TIA 568 A & BRJ45 jack, female, for patch panel installation

245087

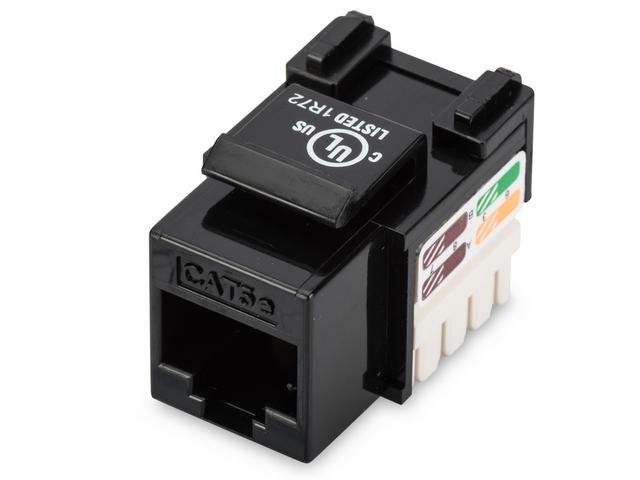

DN-93501 Modular jack, RJ45, CAT5E, RJ45 F-LSA unshielded, black (157427)

Best performance and link quality for your networkCAT 5e Keystone Jack, unshielded, RJ45 to LSA Color black Tested for Link Performance CAT 5eCable installation via LSA stripes, color-coded as per EIA/TIA 568 A & BRJ45 jack, female, for patch panel installation

Staffelkorting op dit artikel aanwezig

245100
DN-93601 Modular Jack, RJ45, CAT6, Unshielded, LSA RJ45 F (132691)

Best performance and link quality for your networkCAT 6 Keystone Jack, unshielded, RJ45 to LSA Color black Tested for Link Performance Class E, for up to 250MHz, 3P Channel Link and Permanent Link certified, EN 50173 and ISO/IEC 11801Cable installation via LSA strips, color coded according to EIA/TIA 568 A & BRJ45 jack, female, for patch panel installation

Staffelkorting op dit artikel aanwezig

022242
RJ45 Cat.6A / ClassEA Shielded keystone zinc body separate dust cap. certified according to ANSI/TIA-568-C.2, ISO/IEC 11801 and IEC 60603-7-51

Keystone, Cat.6a/Class EA // The  OC45 keystone module provides a combination of excellent transmission qualities and an easy tool-free assembly. The high quality of the OC45 keystone module ensures very good qualities for 10Gigabit Ethernet applications. No special tools are needed for the assembly. The assembly is easy and handy to execute.With the OC45 keystone module you receive a fully shielded module, which will provide good service for a long time in yournetwork installation.Specifications:Shielded keystone zinc diecast body with separate dust capCat.6A components certified according to ANSI/TIA-568-C.2, ISO/IEC 11801 and IEC 60603-7-51Compact cable presorter for AWG 24/1 .. AWG 22/1Pair management according to TIA 568A /B colour codesPoE and PoE Plus according to IEEE802.3af/atAppropriate for all distribution panels and frames with Keystone outbreak, not for UAEStrain relief with cable tiesIncluded accessories:1 x RJ45 keystone, 1 x copper foil, 1 x cable tie, dust cover, mounting instruction Handleiding voor toolless keystone jack

Staffelkorting op dit artikel aanwezig

353539
098292 CAT 6A Keystone Jack, shielded, toolfree

CAT 6A Keystone Jack, shielded, 500 MHz acc.ISO/IEC 60603-7-51,11801 AMD2:2010-04, tool free connection The compact design allows the installation of 24 pieces in a row of 483 mm (19") 1U Panels. Material enclosure: Zinc diecast - Nickel plated Material contacts: Phosphor bronze Contacts coating: Nickel, gold plated 0.5 µ Insertion force: max. 30N (acc. to IEC 60603-7-5) Retention strength: 7.7 kg between jack and plug Operating Temperature: -10 °C up to +60 °C (ISO/IEC 11801, ANSI/TIA 568 C.2) Mating cycles: ≥ 750 (ISO/IEC 11801, IEC 60603-7-5) Diameter Cu-Conductor: AWG (26/1 ... 22), stranded and solid Tested with AWG 22 solid installation cable (DIGITIUS® DK-1741-A-VH-X; AWG 22 CAT 7A installation cable) CAT 6A transmission performance is compliance with the ANSI/TIA 568 C.2 standard 500 MHz acc. ISO/IEC 60603-7-51, 11801 AMD2:2010-04 Suitable for PoE/PoE+ RJ45 jack, for patch panel and modular wall outlet installation Tool free cable installation via LSA stripes, color coded according to EIA/TIA 568 A & B Cable entry: Rear side Dimensions (HxWxD): 19.5 x 14.5 x 35.3 mm Weight: 19 g

Staffelkorting op dit artikel aanwezig

366317
DN-93606 CAT 6A Keystone Jack, unshielded, 500 MHz toolfree connection. 245124

DIGITUS CAT 6A Keystone Jack, unshielded, 500 MHz acc. ISO/IEC 11801:2002 AM2:2009/09, tool free connection The Keystone Module "DN-93606" from DIGITUS® is unshielded and provides with tool free installation best performance and link quality for your network. The compact design allows the installation of 24 pieces in a row of 483 mm (19") 1U Panels It is conform to Category 6A / 10GBase-T Channel, ANSI/EIA/TIA 568C.2.1:2002, ISO/IEC 11801:2002 and certificated by GHMT.Material enclosure: ABS non halogen, UL 94 V0Material contacts: Phosphor bronzeContacts coating: Nickel, gold plated 0.6 µMaterial PCB: FR4, 1.2 mm thicknessMating cycles: ≥ 750Operating temperature: -10 °C ~+50 °CTool free cable installation via LSA stripes, color coded according to EIA/TIA 568 A & BRJ45 jack, female, for patch panel installation

Staffelkorting op dit artikel aanwezig

378518
DN-93612-1 CAT 6 Keystone Jack. Shielded, RJ45 to LSA Tool free 245131 E-20072

Quick and safe wire terminations without any special tool CAT 6 Keystone Jack, shielded, 250 MHz acc. ISO/IEC 11801:2002 AM2:2009/09, tool free connection                             The fully downward compatible CAT 6A Keystone Jack makes an easy installation in combination with excellent measurements possible.Transmission properties: Category 6A, Class EA Area of application: Up to 500 MHz, 10GBase-T Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+ General properties: Suitable for patch panels and mounting outlets RJ45 female, 8P8C Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B Cable fixing with cable tie Tool-free installation 360° shield coverage Technical properties: Housing material: Zinc die-cast, nickel-plated RJ45 female material: ABS UL 94V-0 RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact RJ45 shielding: Tinned bronze LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze Conductor plate: FR4, UL 94V-0 Physical properties: Insertion force: 30N max. (IEC 60603-7-5) Retention strength: 7.7 kg between jack and plug Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 IDC wire size: 22 – 26 AWG solid and stranded conductor Insulation resistance: > 500 MOhm Contact resistance: < 20 MilliOhm Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground) Dimensions (HxWxD): 20,14,34 mm Weight: 22 g //

Staffelkorting op dit artikel aanwezig

083687
Cat.5e RJ45 keystone Jack UTP, Snap-in, LSA (White)

Cat.5e RJ45 Keystone Jack UTP Suitable for AWG22 - AWG26 LSA tool necessary  For use in modular distribution panels up to 24 ports
