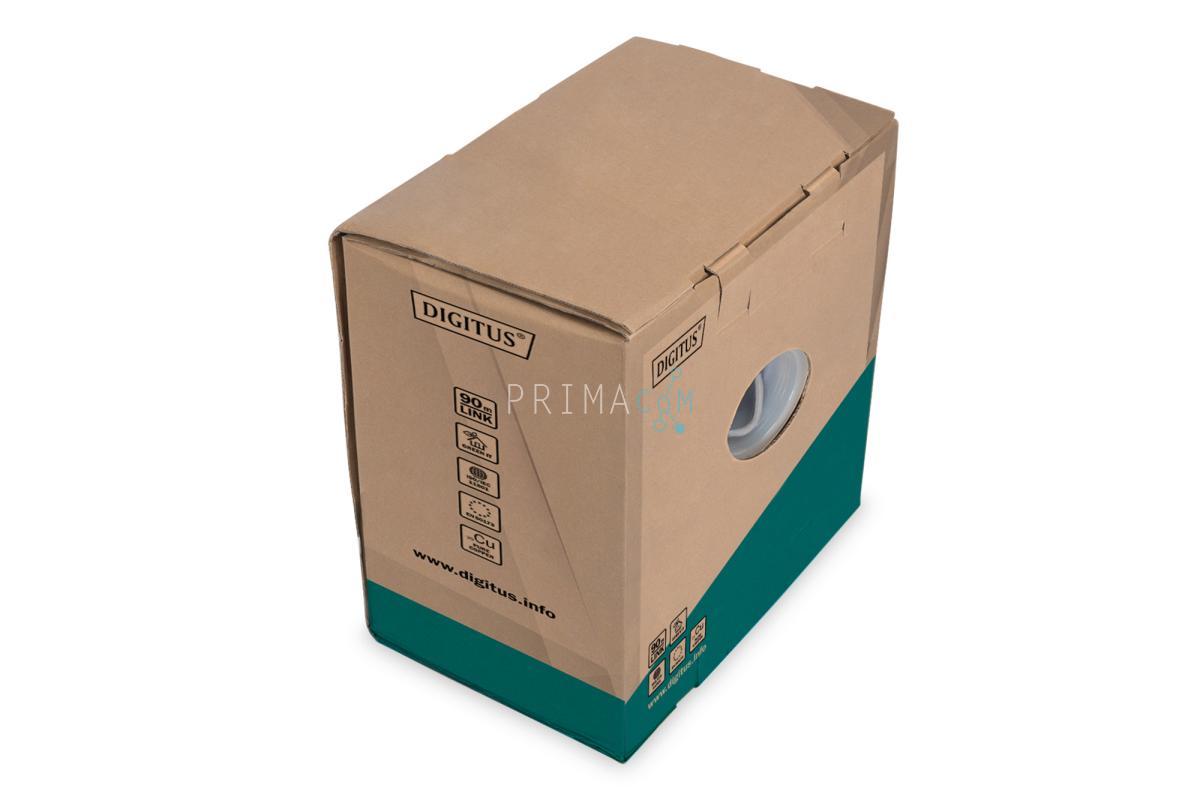

DK-1511-V-305-1 Digitus CAT 5e U-UTP installation cable, 100 MHz Eca (PVC), AWG 24/1, 305 m paper box, sx, grey
€ 124,38 prijzen per stuk excl. BTW
Staffelkorting
Aantal | Prijs |
---|---|
1 - 3 | € 124,38 |
4 - 7 | € 121,88 |
8 - 11 | € 118,75 |
12 > | € 115,63 |
Artikelnummer
363811
Voorraad
15
305m 100% koper
CAT 5e U-UTP installation cable, 100 MHz Eca (PVC), AWG 24/1, 305 m paper box, sx, grey
- 1GBit Ethernet
- 100 Mhz transmission frequency
- PoE Power over Ethernet support
- CPR class Eca
Technical details:
- Physical properties:
- Conductor: Bare annealed copper, solid AWG 24/1
- Insulation: PE (Polyethylene)
- Total number of insulated conductors: 8, twisted in 4 pairs
- Color code: Blue-white, orange-white, green-white, brown-white
- Individual pair shield: None
- Overall shielding: None
- Outer sheath: Eca acc. to EN 50575; PVC
- Outer sheath diameter (nominal): 0.50 mm nominal
- Outer sheath color: Grey (RAL 7035)
- Mechanical properties:
- Tensile loading: 150N max.
- Dynamic bending radius: 8x AD mm min.
- Static bending radius: 4x AD mm min.
- Shipping- and storage temperature range: -20 °C up to +75 °C
- Operating temperature range: -20 °C up to +60 °C
- Installation temperature range: 0 °C up to +50 °C
- Overall diameter Simplex (nominal): 4.7 mm nominal
- Electrical properties:
- Impedance: 100±5 Ohm @ 1-600 MHz
- Capacitance: 40 pF/m nominal @ 800 Hz
- Capacitance unbalance (pair-ground): 1.5 pF/m max. @ 1 KHz
- Insulation resistance: 5 GOhm x km min.
- DC loop resistance: 147 Ohm/km max. (2% max. resistance unbalance)
- Voltage resistance: 72 Vdc max.
- Coupling attenuation: CA-Type 3
- Signal propagation delay: 535 nS/100 m max.
- Propagation delay: 20 nS/100 m max.
- Separating class: ,,b" acc. to EN 50174-2
- NVP: 69%
- AWG-size: 24
- Category: 5E
- Colour outer sheath: Grey
- Conductor category: Class 1 = solid
- Conductor material: Cu, bare
- Core identification: Colour
- Core insulation: PE (polyethylene)
- Flame retardant: No
- Halogen free (acc. EN 60754-1/2): no
- Low smoke (acc. EN 61034-2): no
- Material outer sheath: PVC
- Number of cores: 8
- NVP value: 69
- Outer diameter approx.: 5
- Permitted cable outer temperature, fixed (MIN): -20 … 60
- Permitted cable outer temperature, in movement (MIN): -20 … 75
- Screen over stranding: None
- Screen over stranding element: None
- Stranding element: Pairs
EAN nr | 4016032363811 |
