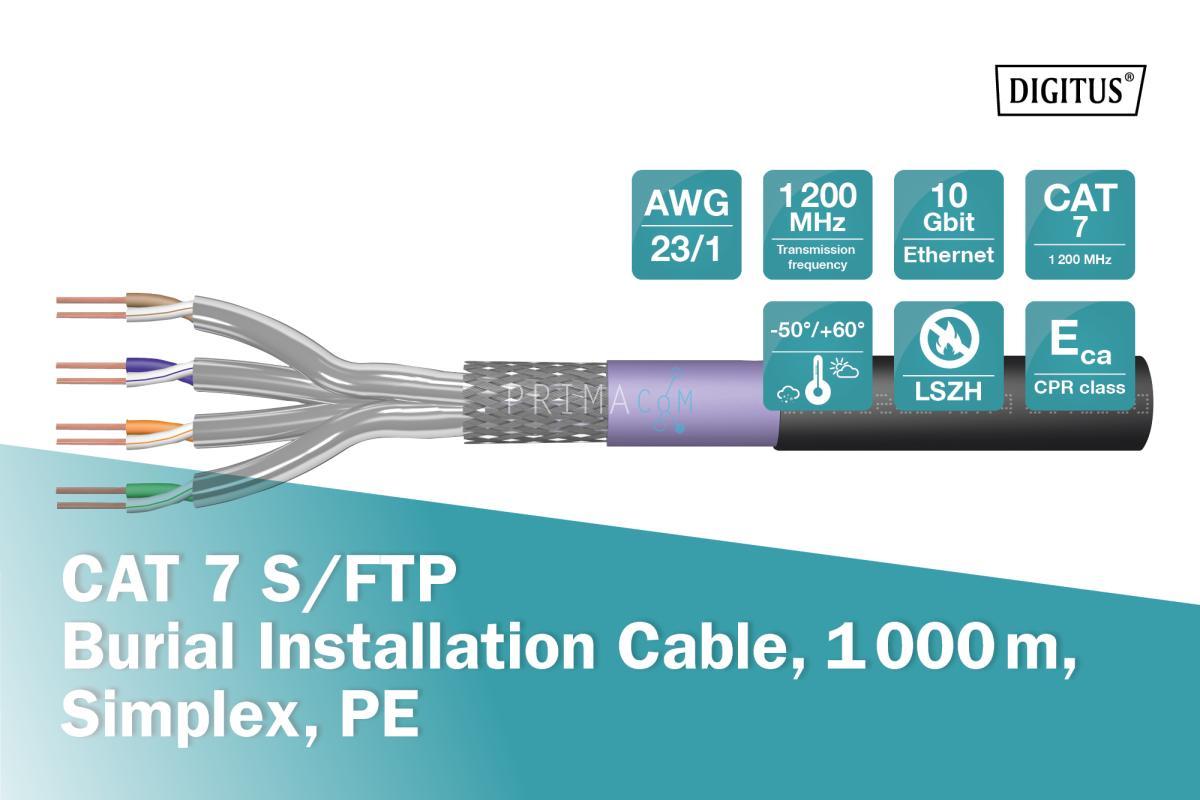

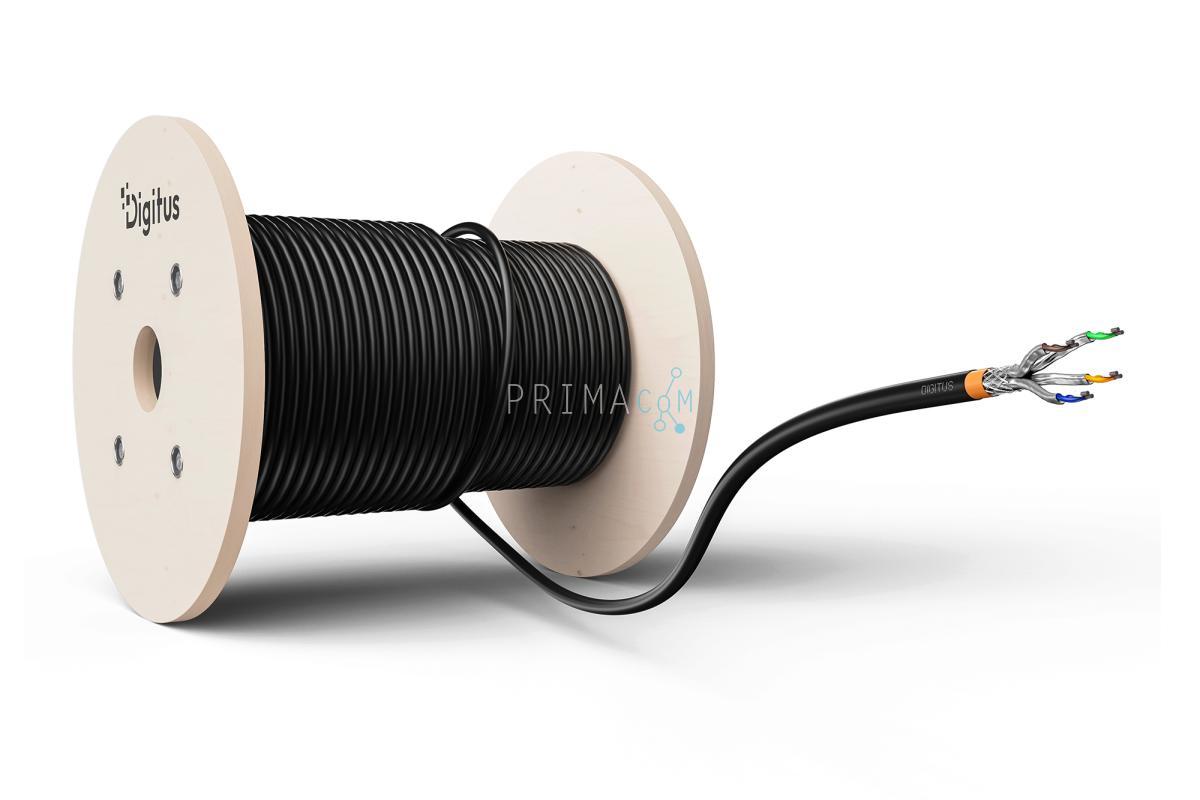

ofDK-1741-VH-10-OD Cat.7 S/FTP grondkabel, 1000 m, simplex, PE (Polyethylene)
Nieuw
Dit is geen voorraad artikel maar na bestelling binnen enkele werkdagen leverbaar
Geschikt voor installaties in droge of natte ruimtes, buiten of op/in de grond.
- 10GBit Ethernet
- 1200 MHz transmission frequency

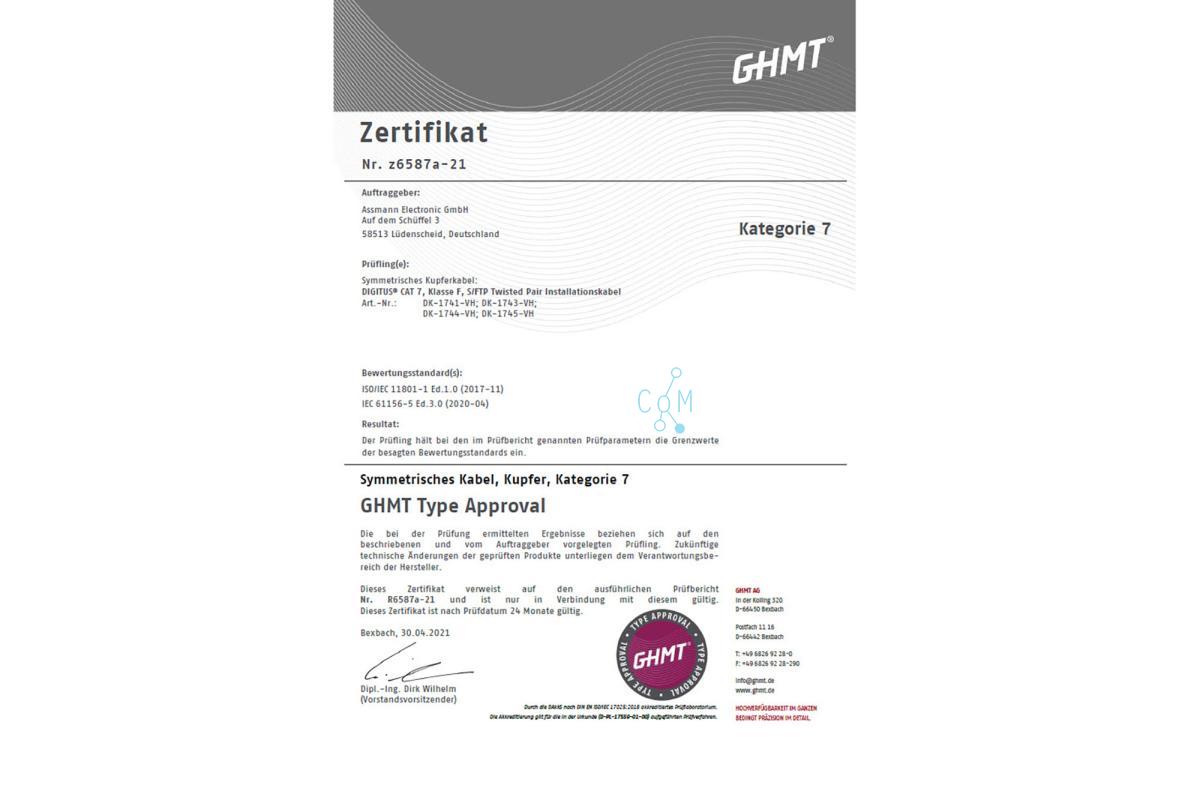

- Permanent link certified
- PoE Power over Ethernet support
- PE outer jacket, CPR class Eca inner jacket

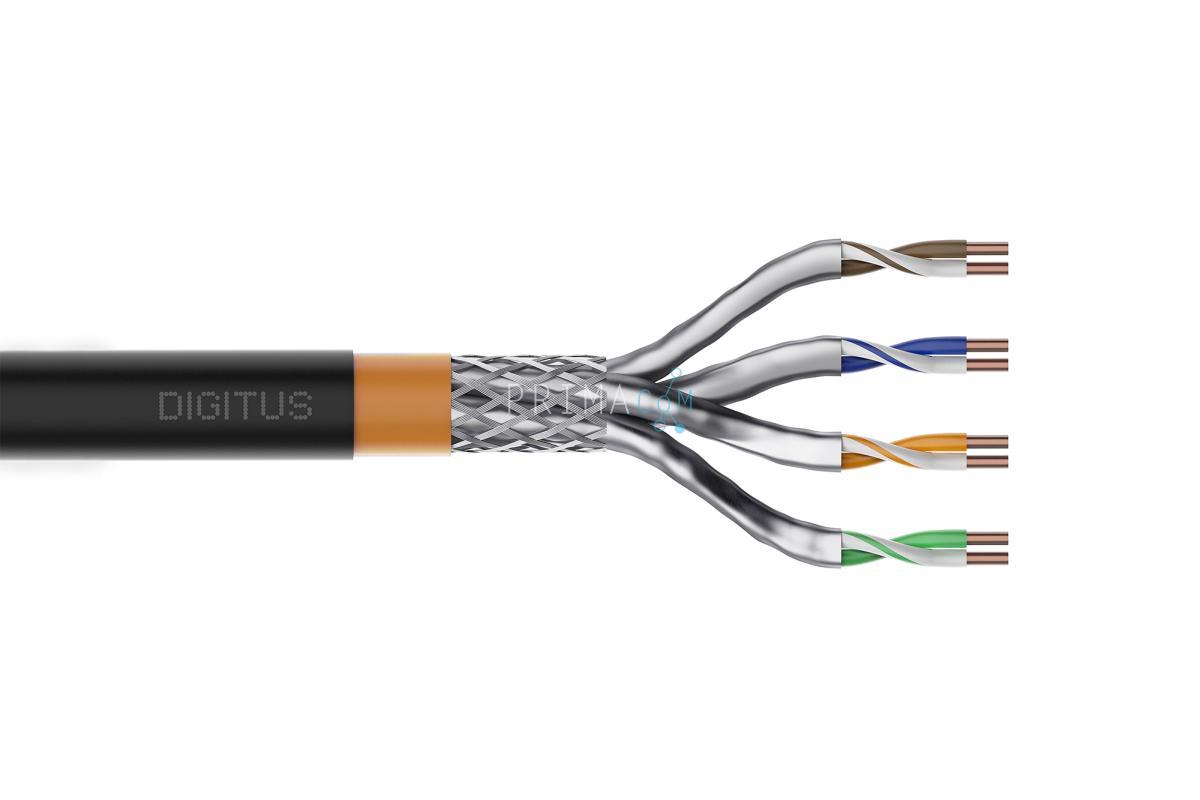

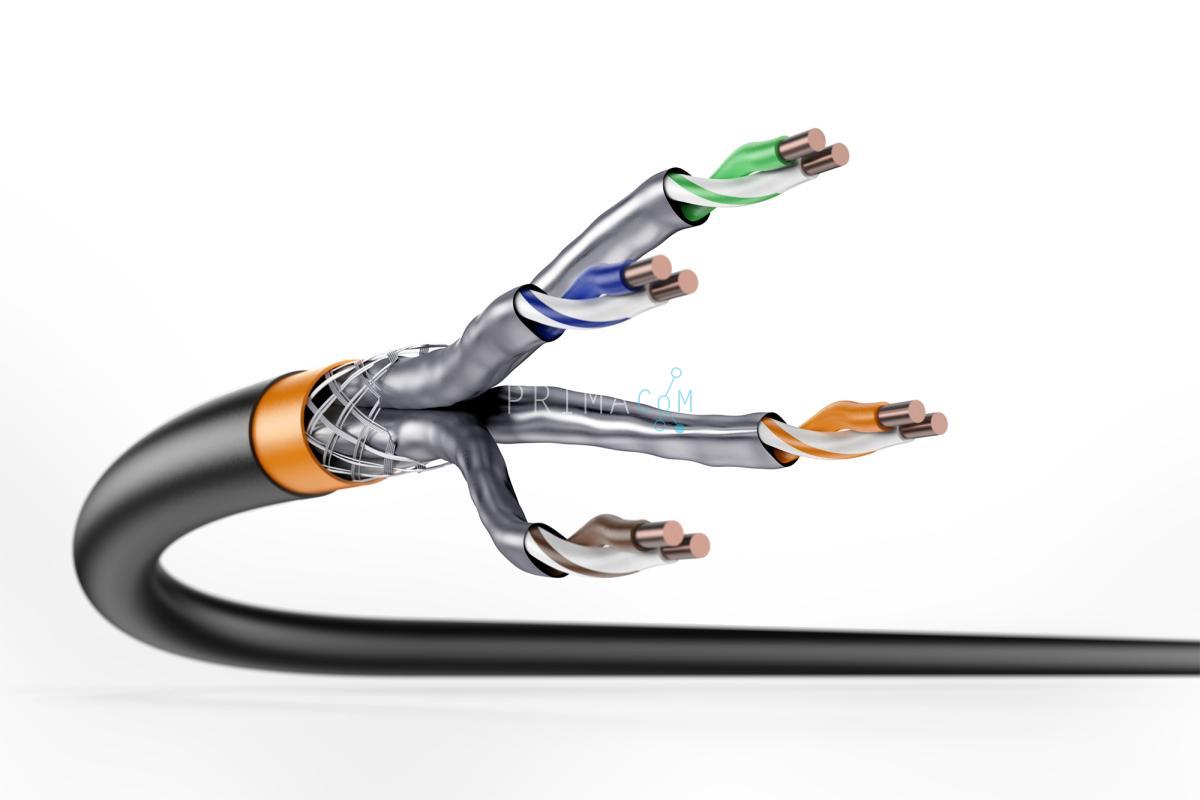

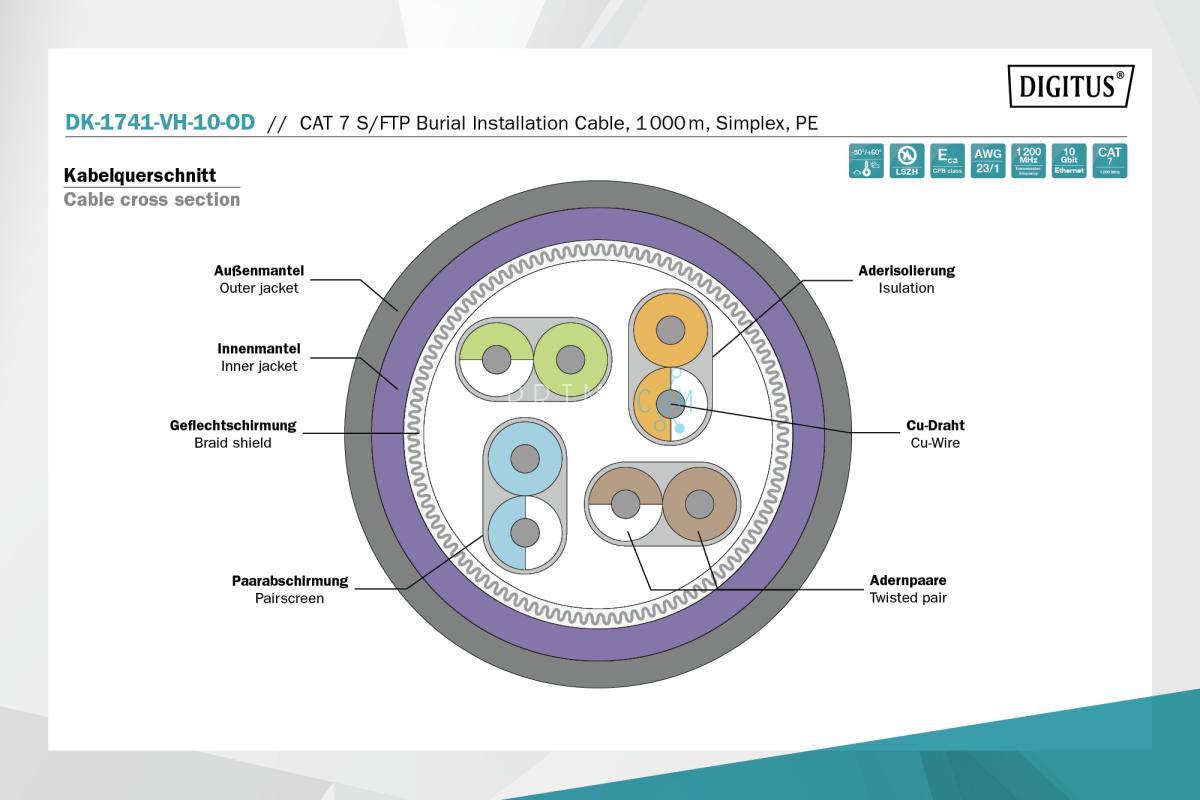

De Digitus Cat.7 S/FTP grondkabel kenmerkt zicht door de volgende kabelconstuctie 4x2x AWG23/1 en bereikt een zendfrequentie tot 1200 Mhz.

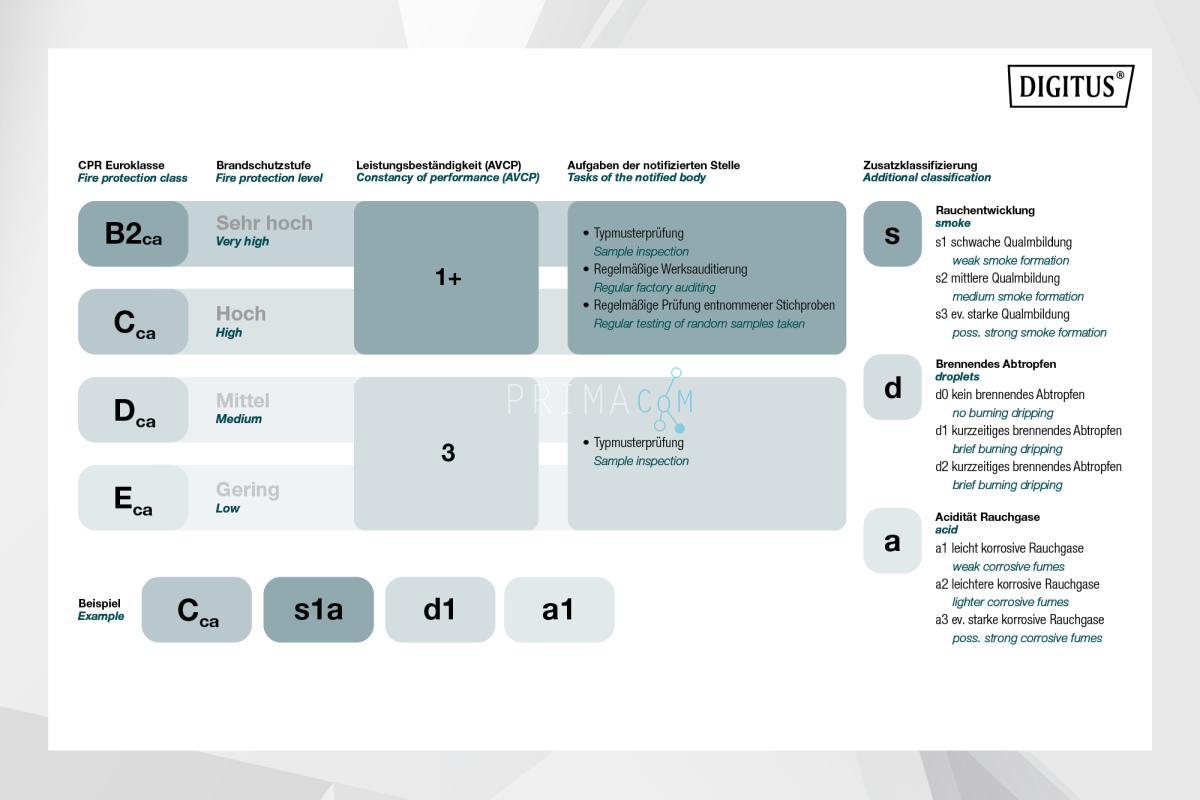

De kabel heeft een PE buitenmantel en een halogeenvrije binnenmantel en is conform de norm IEC 60332-1, FRNC-B, LSZH-1 en CPR Euroklasse Eca.
Geschikt voor installaties in droge of natte ruimtes, buiten of op/in de grond.
Voldoet aan de volgende normen ISO/IEC 11801, DIN EN 50173, DIN EN 50288-4-1.

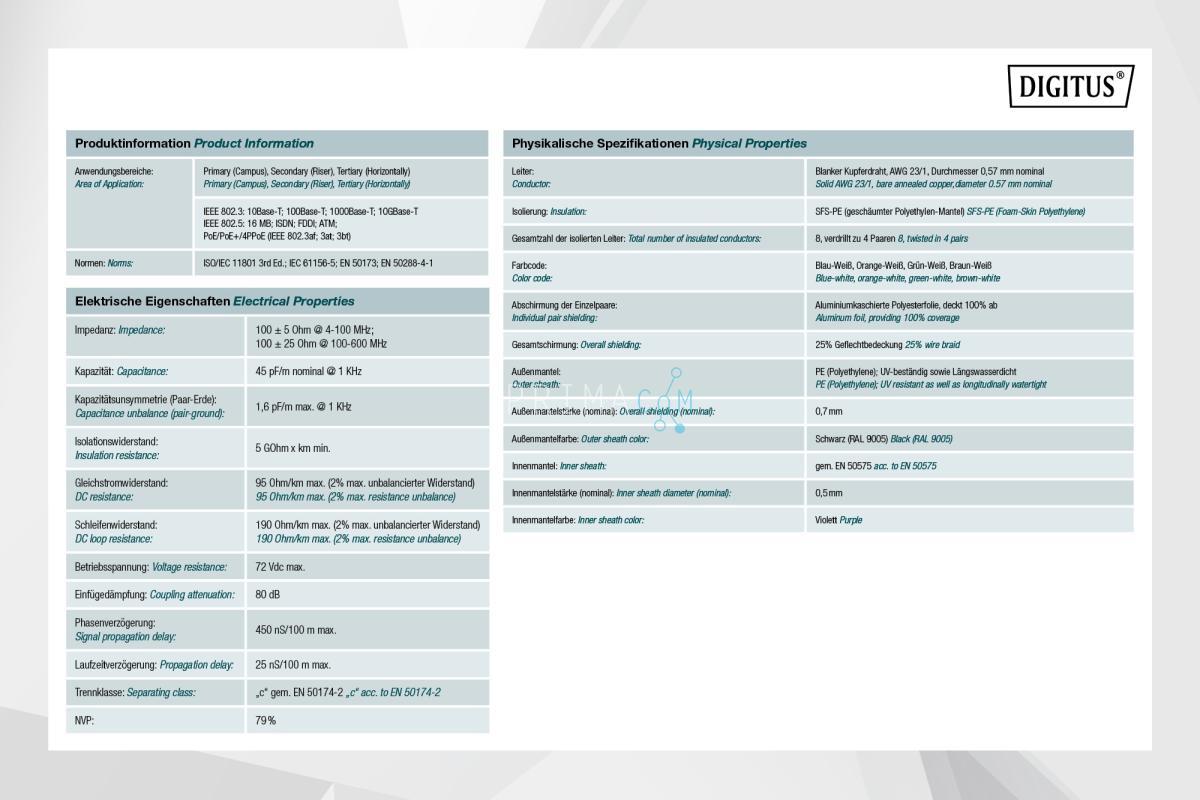

Technical details:
- Physical properties:
- Conductor: Bare annealed copper, solid AWG 23/1
- Insulation: SFS-PE (Foam-Skin Polyethylene)
- Total number of insulated conductors: 8, twisted in 4 pairs
- Color code: Blue-white, orange-white, green-white, brown-white
- Individual pair shielding: Aluminum foil, providing 100 % coverage
- Overall shielding: Copper wire braid
- Outer sheath: PE (Polyethylene); UV resistant
- Outer sheath diameter (nominal): 0.50 mm nominal
- Outer sheath color: Black (RAL 9005)

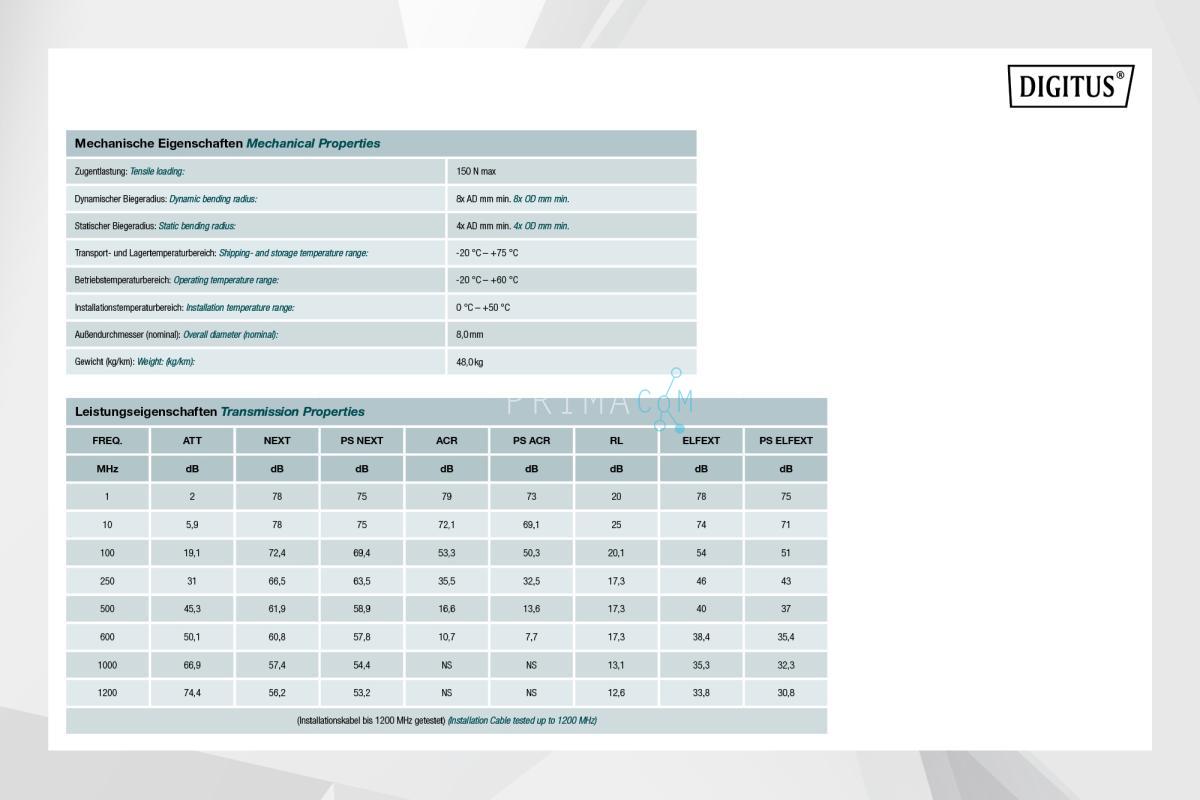

- Mechanical properties:
- Tensile loading: 150N max.
- Dynamic bending radius: 8x AD mm min.
- Static bending radius: 4x AD mm min.
- Shipping- and storage temperature range: -20 °C up to +60 °C
- Operating temperature range: -50 °C up to +60 °C
- Installation temperature range: 0 °C up to +60 °C
- Overall diameter Simplex (nominal): 8.5 mm nominal (Eca)
- Weight (kg/km): 66.5 kg/km
- Electrical properties:
- Impedance: 100±5 Ohm @ 4-100 MHz; 100±25 Ohm @ 100-1200 MHz
- Capacitance: 45 pF/m nominal @ 1 KHz
- Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz
- Insulation resistance: 5 GOhm x km min.
- DC resistance: 95 Ohm/km max. (2% max. resistance unbalance)
- DC loop resistance: 190 Ohm/km max. (2% max. resistance unbalance)
- Voltage resistance: 72 Vdc max.
- Coupling attenuation: CA-Type 1b
- Signal propagation delay: 450 nS/100 m max.
- Delay difference: 10 nS/100 m max.
- Separating class: “d” acc. to EN 50174-2
- NVP: 79%
- Assortment: Twisted Pair Installation Cables
- Category: CAT 7
- Shielding: S-FTP, pairs in metal foil and braid shielding
- CPR: Eca
- Length: 1000 m
- Color: black
- Jacket: PE
- Structure: 4 x 2 AWG 23/1, solid twisted pair
| EAN nr | 4016032354130 |
