Cat.6 patch panels

241553
DN-91624U 19"CAT 6 Patch Panel, unshielded, 24-port RJ45 24-port RJ45, 8P8C, LSA, 1U, bl, 482x44x109 mm, black

DIGITUS CAT 6, Class E Patch Panel, unshielded, 24-port RJ45, 8P8C, LSA, 1U, Rack Mount Color black RAL 9005 Transmission properties: Category 6 Area of application: Up to 250 MHz, 1GBase-T, PoE Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C General properties: Suitable for 483 mm (19") cabinet mounting RJ45 female, 8P8C Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B Cable fixing with smart cable ties Mechanical properties: Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110 RJ45 female material: ABS UL 94V-0 RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact RJ45 shielding: Tinned bronze LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze Ground wire: Not included Conductor plate: FR4, UL 94V-0 Physical properties: Insertion force: 30N max. (IEC 60603-7-5) Retention strength: 7.7 kg between jack and plug Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 IDC wire size: 22 – 26 AWG solid and stranded conductor Insulation resistance: > 500 MOhm Contact resistance: < 20 MilliOhm Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground) Contact resistance: < 20 MilliOhm Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground) Ports: 24 Units: 1 Category: CAT 6 The unshielded CAT 6 Patch Panel 24-port (1 Hight unit)  It is manufactured acc. to Link Performance Class E, for up to 250 MHz, EN 50173 and ISO/IEC 11801. It is UL certified. The housing is made of 1.5 mm galvanized cold-rolled steel is is therefore perfectly suitable for19" rack mounting.

€ 28,69
prijzen per stuk excl. BTW
Staffelkorting op dit artikel aanwezig

241560
DN-91648U Digitus CAT6, Class E Patch Panel, unshielded, 48-port RJ45, LSA, 2U, Rack mount black

Best performance and link quality for your networkDIGITUS CAT 6, Class E Patch Panel, unshielded, 48-port RJ45, 8P8C, LSA, 2U, Rack Mount Color black RAL 9005 Tested according to Link Performance Class E, for up to 250MHz, ISO/IEC 11801 and EN 50173UL, 3P Permanent Link and Channel Link certifiedHousing of 1.2mm sheet steelRJ45 jacksCable installation via LSA strips, color codes based on EIA/TIA 568 A & BFixing option for cable ties, central ground connectionSuitable for 483mm (19") Rack MountMaterial housing: SECC, 1,5mm Electrogalvanized, Cold-rolled Steel accc. EN1.4301, UNS S30400, AISI 304 and LMSAD110Category: CAT 6Ports: 48Color: black, RAL 9005

€ 49,38
prijzen per stuk excl. BTW
Staffelkorting op dit artikel aanwezig
Sale

241614
DN-91624S CAT6 STP 19" patch panel 24 port, 1U fully shielded

DIGITUS CAT 6, Class E patch panel, shielded, 24-port RJ45, 8P8C, LSA, 1U, Rack Mount Color grey RAL 7035 Manufactured acc. Link Performance Class E, for up to 250MHz, EN 50173 and ISO/IEC 11801 Shielded RJ45 jacks Cable installation via LSA strips, color codes based on EIA/TIA 568 A & B Fixing option for cable ties, central ground connection Suitable for 483mm (19") Rack Mount Material housing: SECC, 1,5mm Electrogalvanized, Cold-rolled Steel accc. EN1.4301, UNS S30400, AISI 304 and LMSAD110 Complies with the 802.3at PoE+ and the 802.3af PoE standard Category: CAT 6 Ports: 24 Color: light grey, RAL 7035 Units: 1

€ 36,88
prijzen per stuk excl. BTW
Staffelkorting op dit artikel aanwezig

887972

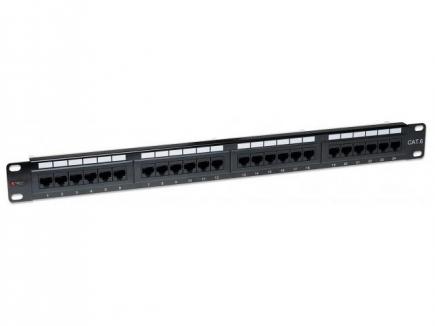

PA-24 C6-S Patch panel Cat6 24 ports shielded, black

Professional 19" Shielded Cat.6 patchpanel met 24 poorten24x RJ45 afgeschermde Cat.6 poorten gesoldeerde vernikkelde aansluitingen met vergulde contactenEIA/TIA 568A/B ISO/IEC 11801, EN 50173afmetingen: 482,6 x 44,45 x 111 mm (breedte x hoogte x diepte)kleur: zwart• IEEE 802.3 (10Base-T Ethernet)• IEEE 802.3u (100Base-TX Fast Ethernet)• IEEE 802.3ab (1000Base-T Gigabit Ethernet)Inhoud verpakking:• Patch Panel• 4 kooimoeren• Nylon Ties

€ 36,88
prijzen per stuk excl. BTW
Staffelkorting op dit artikel aanwezig

288428
DIGITUS DN-91624S-EA CAT 6A, Class EA patch panel shielded 1U 24-port RJ45 + dust cvr grey RAL 7035

DIGITUS CAT 6a Class EA Patch Panel,shielded, 1U,, 24-port RJ45 incl. dust cover, 8P8C, grey RAL 7035 483mm (19")CAT 6a Class EA for up to 500 MHzQualified for 10 GBit EthernetShielded RJ45 sockets, 8P8CMaterial housing: SECC, 1,5mm Electrogalvanized, Cold-rolled Steel accc. EN1.4301, UNS S30400, AISI 304 and LMSAD110Suitable for 483mm (19") Rack Mount360° Shield coverageDust protection shutter includedCable installation via LSA strips, color coded according to EIA/TIA 568 A & BFixing option for cable ties, central ground connectionComplies with the 802.3at PoE+ and the 802.3af PoE standardCategory: CAT 6aPorts: 24Color: light grey, RAL 7035Units: 1

€ 71,16
prijzen per stuk excl. BTW
Staffelkorting op dit artikel aanwezig

206569-LSA
DN-LSA-PT LSA+ punch down tool (LSA tang)

Digitus LSA Punch Down Tool is een LSA patchtang om U/UTP of S/FTP installatiekabel vast te zetten aan patchpanels, keystone-jacks of wandcontactdozen met LSA strips.Bij het vastzetten van de kabel wordt automatisch het uitstekende gedeelte van de ader afgeknipt. De LSA patchtang is voorzien van een uitklapbare trekhaak en een ontgrendelmesje en wordt geleverd incl. een kunstlederen hoes voor bescherming van de LSA tang.

€ 5,93
prijzen per stuk excl. BTW
Staffelkorting op dit artikel aanwezig

261674
DN-94003 LSA tang pressing tool for type 110 terminal blocks and keystone jacks

DIGITUS Terminal Block Pressing Tool, for Type 110 and keystone jacks Area of application: For cutting off the protruding wire ends General properties: High quality pressing tool for “Type 110” terminal blocks and keystone jacks Includes extraction- and unlocking device

€ 7,43
prijzen per stuk excl. BTW
Staffelkorting op dit artikel aanwezig
