Cat5 keystone jacks

276005

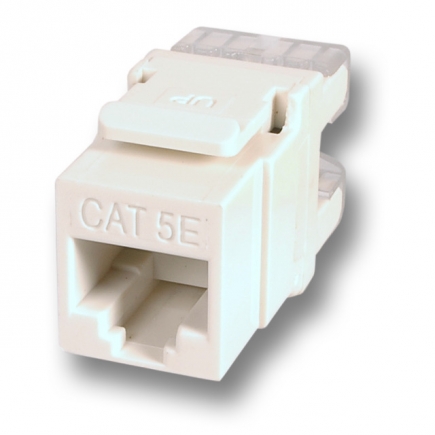

DN-93502 CAT 5e Keystone Jack, unshielded RJ45 to LSA, Tool Free Connection

CAT 5e, Class D Keystone Module, unshielded, toolfree Best performance and link quality for your network. The DN-93502 from DIGITUS® is an unshielded CAT 5e Keystone Module with tool free installation which provides best performance and link quality for your network. The cable installation takes place via LSA, color coded acc. EIA/TIA 568 A&B. Technical details Transmission properties: Category 5e Area of application: Up to 100 MHz, 10/100Base-T, 1GBase-T Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C General properties: Suitable for 483 mm (19") cabinet mounting RJ45 female, 8P8C Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B Cable fixing with cable tie Tool-free installation Technical properties: RJ45 female material: ABS UL 94V-0 RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze Conductor plate: FR4, UL 94V-0 Physical properties: Insertion force: 30N max. (IEC 60603-7-5) Retention strength: 7.7 kg between jack and plug Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 IDC wire size: 22 – 26 AWG solid and stranded conductor Insulation resistance: > 500 MOhm Contact resistance: < 20 MilliOhm Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground) Assemblage instructiesQuick Start Guide

Staffelkorting op dit artikel aanwezig

245094
DN-93511 CAT 5e Keystone Jack, shielded. RJ45 to LSA

Best performance and link quality for your networkCAT 5e Keystone Jack, shielded, RJ45 to LSA Tested for Link Performance CAT 5eCable installation via LSA stripes, color-coded as per EIA/TIA 568 A & BRJ45 jack, female, for patch panel installation

245087
DN-93501 Keystone jack, RJ45, CAT5E, RJ45 F-LSA unshielded, black (157427)

CAT 5e, Class D Keystone Module, unshielded Best performance and link quality for your network. This is an unshielded CAT 5e Keystone Module, which provides best performance and link quality for your network. The cable installation takes place via LSA, color coded acc. EIA/TIA 568 A&B. Technical details Transmission properties: Category 5e Area of application: Up to 100 MHz, 10/100Base-T, 1GBase-T Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C General properties: Suitable for 483 mm (19?) cabinet mounting RJ45 female, 8P8C Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B Cable fixing with cable tie Technical properties: RJ45 female material: ABS UL 94V-0 RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze Conductor plate: FR4, UL 94V-0 Physical properties: Insertion force: 30N max. (IEC 60603-7-5) Retention strength: 7.7 kg between jack and plug Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 IDC wire size: 22 – 26 AWG solid and stranded conductor Insulation resistance: > 500 MOhm Contact resistance: < 20 MilliOhm Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground) DatasheetQuick Start Guide

Staffelkorting op dit artikel aanwezig
Nieuw

193850
Keystone montage box (behuizing), voor 1x keystone jack met zelfsluitend stofkapje en naamplaatje voor labeling.

Dit lege doosje kan gebruikt worden als aanluitdoos op de muur of in behuizingen en is geschikt voor eenvoudige snap-in montage van een keystone module. Voor 1 keystone jackKleur: puur wit, RAL9010Materiaal: ABSAfmeting: 37 x 65 x30 mm (L x W x D)Geschikt voor wall mountingStofkapje is zelf sluitend Naamplaatje voor labelingLevering zonder modules Inhoud:1x montagebox1x dubbelzijdig tape1x cable tie2x zelf tappende schroeven 4x14

Staffelkorting op dit artikel aanwezig
